验证数据展示

WB analysis using 10434-1-AP
Various lysates were subjected to SDS PAGE followed by western blot with 10434-1-AP (DIABLO antibody) at dilution of 1:8000 incubated at room temperature for 1.5 hours.

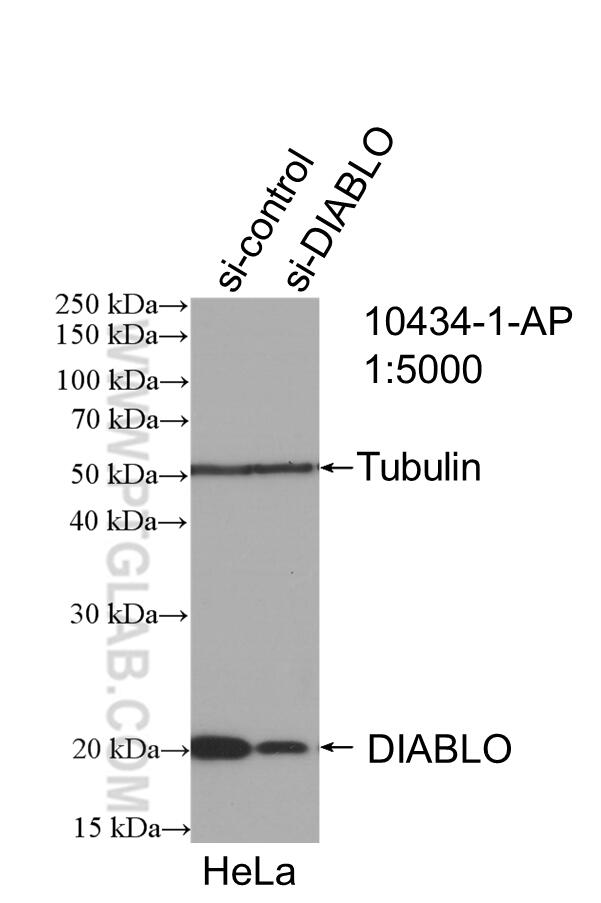

WB analysis of HeLa using 10434-1-AP
WB result of DIABLO antibody (10434-1-AP; 1:5000; incubated at room temperature for 1.5 hours) with sh-Control and sh-DIABLO transfected HeLa cells.

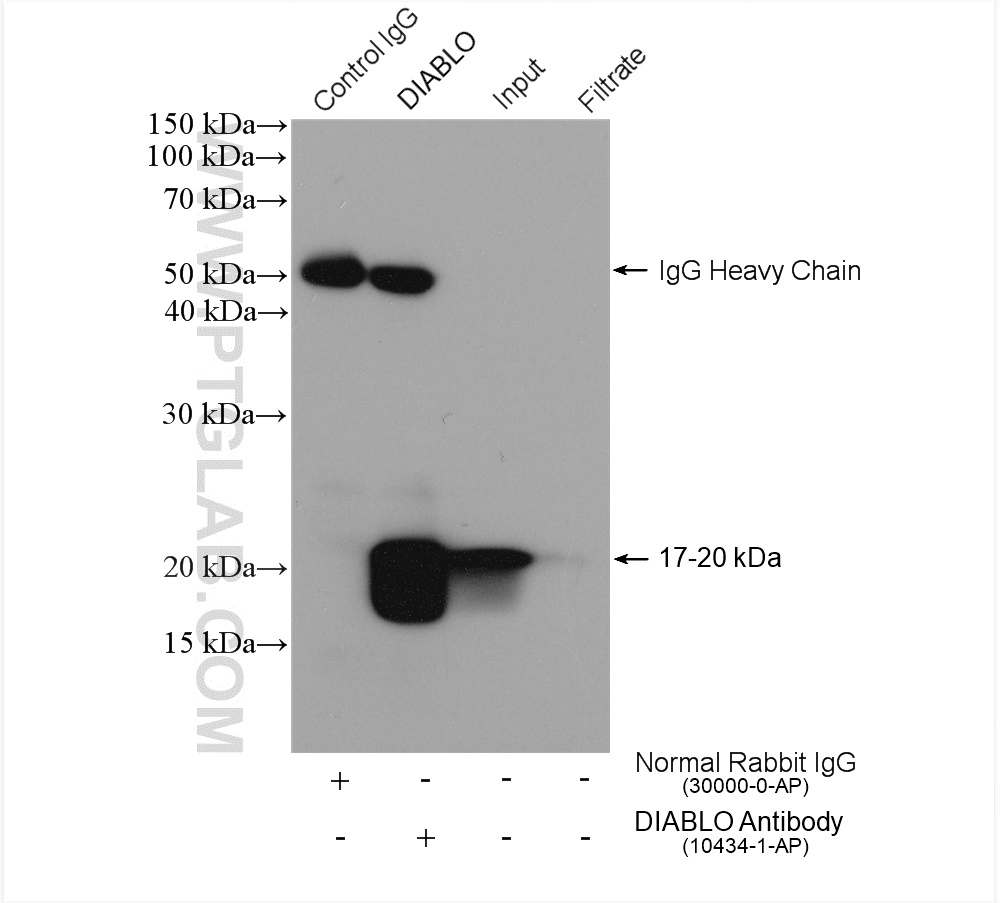

IP experiment of HepG2 using 10434-1-AP
IP result of anti-DIABLO (IP:10434-1-AP, 4ug; Detection:10434-1-AP 1:2000) with HepG2 cells lysate 880 ug.
IHC staining of mouse testis using 10434-1-AP
Immunohistochemical analysis of paraffin-embedded mouse testis tissue slide using 10434-1-AP (DIABLO antibody) at dilution of 1:200 (under 10x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

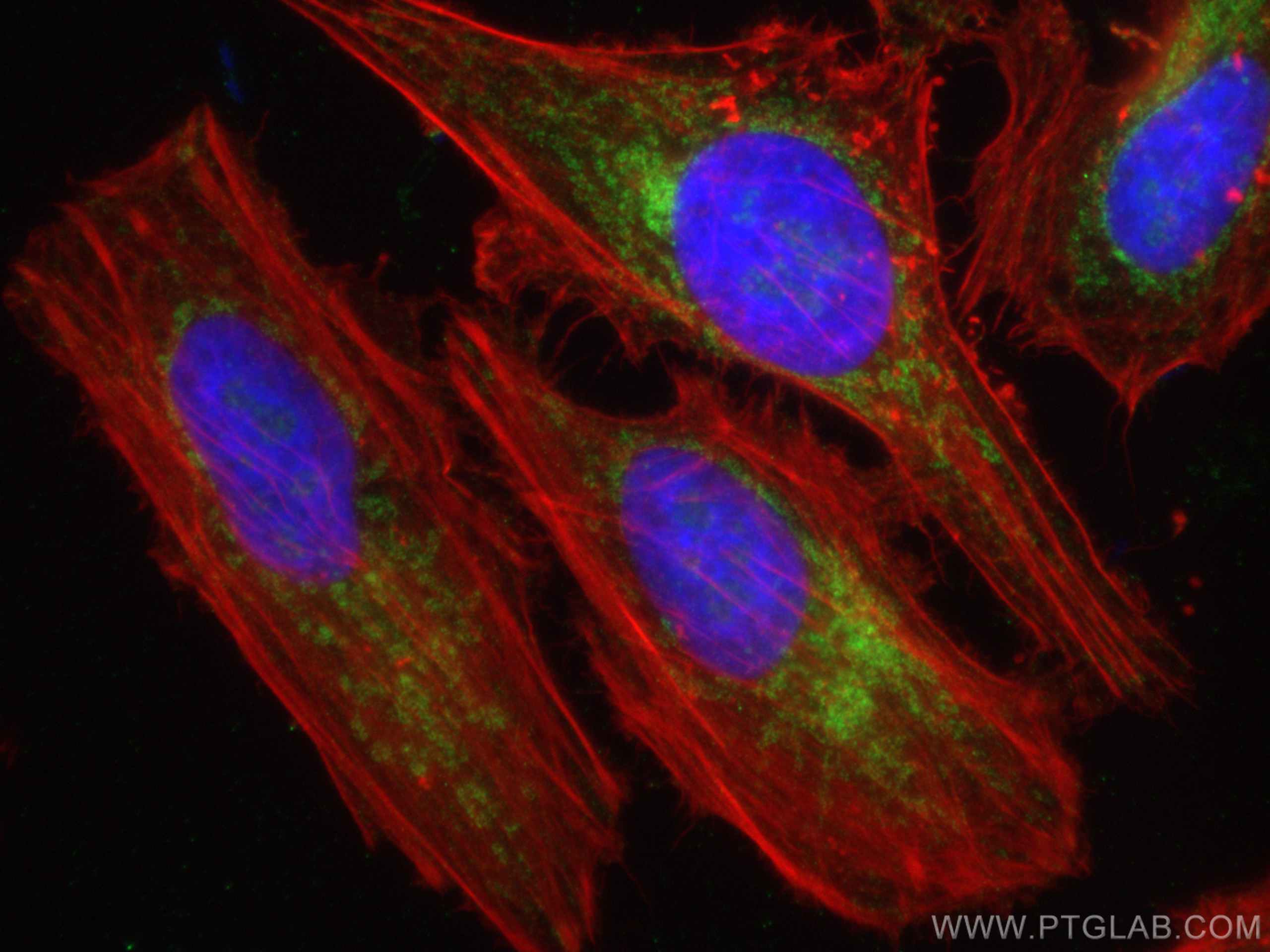

IF Staining of HeLa using 10434-1-AP
Immunofluorescent analysis of (4% PFA) fixed HeLa cells using DIABLO antibody (10434-1-AP) at dilution of 1:200 and CoraLite®488-Conjugated AffiniPure Goat Anti-Rabbit IgG(H+L), CL594-Phalloidin (red).
FC experiment of HeLa using 10434-1-AP
1X10^6 HeLa cells were intracellularly stained with 0.4 ug Anti-Human DIABLO (10434-1-AP) and CoraLite®488-Conjugated AffiniPure Goat Anti-Rabbit IgG(H+L) at dilution 1:1000 (red), or 0.4 ug Isotype Control. Cells were fixed with 4% PFA and permeabilized with Flow Cytometry Perm Buffer (PF00011-C).

Featured Product
KD/KO验证

Smac/DIABLO Polyclonal antibody

Smac/DIABLO Polyclonal Antibody for WB, IHC, IF/ICC, FC (Intra), IP, ELISA

Cat No. 10434-1-AP

产品说明书

引用文献(17)

宿主/亚型

Rabbit / IgG

种属反应性

human, mouse, rat and More (1)

应用

WB, IHC, IF/ICC, FC (Intra), IP, ELISA and More (1)

别名

DIABLO, DFNA64, Direct IAP-binding protein with low pI, Diablo IAP-binding mitochondrial protein, cleaved form, Diablo IAP-binding mitochondrial protein

缓冲液配方: PBS and Azide

PBS and Azide

偶联物: Unconjugated

Unconjugated

CoraLite® Plus 488

规格:

-/ -

点击咨询售前客服

点击咨询售后客服

概述

经过测试的应用
产品信息
发表文章 (17)
实验方案

产品说明书

MSDS

经过测试的应用

Positive WB detected in	HEK-293 cells, HeLa cells, HepG2 cells, mouse testis tissue, rat testis tissue
Positive IP detected in	HepG2 cells
Positive IHC detected in	mouse testis tissue **Note: suggested antigen retrieval with TE buffer pH 9.0; () Alternatively, antigen retrieval may be performed with citrate buffer pH 6.0***
Positive IF/ICC detected in	HeLa cells
Positive FC (Intra) detected in	HeLa cells

Planning an IF experiment? We recommend our CoraLite® Plus 488 conjugated versions of this antibody.

应用	推荐稀释比
Western Blot (WB)	WB : 1:2000-1:16000
Immunoprecipitation (IP)	IP : 0.5-4.0 ug for 1.0-3.0 mg of total protein lysate
Immunohistochemistry (IHC)	IHC : 1:50-1:500
Immunofluorescence (IF)/ICC	IF/ICC : 1:50-1:500
Flow Cytometry (FC) (INTRA)	FC (INTRA) : 0.40 ug per 10^6 cells in a 100 µl suspension
It is recommended that this reagent should be titrated in each testing system to obtain optimal results.
Sample-dependent, Check data in validation data gallery.

发表文章中的应用

WB	See 15 publications below
IHC	See 1 publications below
IF	See 1 publications below

产品信息

10434-1-AP targets Smac/DIABLO in WB, IHC, IF/ICC, FC (Intra), IP, ELISA applications and shows reactivity with human, mouse, rat samples.

经测试应用	WB, IHC, IF/ICC, FC (Intra), IP, ELISA Application Description
文献引用应用	WB, IHC, IF
经测试反应性	human, mouse, rat
文献引用反应性	human, mouse, rat, hamster
免疫原	Smac/DIABLO fusion protein Ag0696 种属同源性预测
宿主/亚型	Rabbit / IgG
抗体类别	Polyclonal
产品类型	Antibody
全称	diablo homolog (Drosophila)
别名	DIABLO, DFNA64, Direct IAP-binding protein with low pI, Diablo IAP-binding mitochondrial protein, cleaved form, Diablo IAP-binding mitochondrial protein
计算分子量	27 kDa
观测分子量	20 kDa
GenBank蛋白编号	BC011909
基因名称	DIABLO
Gene ID (NCBI)	56616
RRID	AB_2092647
偶联类型	Unconjugated
形式	Liquid
纯化方式	Antigen affinity purification
UNIPROT ID	Q9NR28
储存缓冲液	PBS with 0.02% sodium azide and 50% glycerol , pH 7.3
储存条件	Store at -20°C. Stable for one year after shipment. Aliquoting is unnecessary for -20^oC storage.

背景介绍

Smac/DIABLO is a mitochondrial protein that promotes apoptosis by neutralizing members of the IAP family. SMAC/DIABLO is ubiquitously expressed in normal tissues, and the expression of SMAC messenger RNA (mRNA) in adult testis is the highest .Smac/DIABLO encodes a 239 amino acid protein (~27 kDa). The first 55 amino acids are a mitochondrial targeting signal peptide that is cleaved to generate mature Smac-DIABLO (~21 kDa). When released from mitochondria, Smac-DIABLO acts as a natural antagonist of inhibitor of apoptosis proteins (IAPs). Smac-DIABLO antagonistic activity is based on its N-terminal tetrapeptide (AVPI) that binds baculoviral IAP repeat (BIR) domains of IAPs, releasing their inhibitory effects on both initiator and effector caspases, thus promoting cell death. (PMID: 32325691, PMID: 32575872,PMID: 25650938)

实验方案

Product Specific Protocols
WB protocol for Smac/DIABLO antibody 10434-1-AP	Download protocol
IHC protocol for Smac/DIABLO antibody 10434-1-AP	Download protocol
IF protocol for Smac/DIABLO antibody 10434-1-AP	Download protocol
IP protocol for Smac/DIABLO antibody 10434-1-AP	Download protocol
FC protocol for Smac/DIABLO antibody 10434-1-AP	Download protocol

Standard Protocols
Click here to view our Standard Protocols

发表文章

Species	Application	Title
human	WB	Eur J Med Chem PKM2/PDK1 dual-targeted shikonin derivatives restore the sensitivity of EGFR-mutated NSCLC cells to gefitinib by remodeling glucose metabolism Authors - Hongyan Lin View Article
mouse	WB	J Cell Physiol Resveratrol ameliorates podocyte damage in diabetic mice via SIRT1/PGC-1α mediated attenuation of mitochondrial oxidative stress. Authors - Tao Zhang View Article
	WB	Ann Transl Med Botrychium schaffneri Underw. extract acts via DIABLO to induce apoptosis and inhibit proliferation of non-small cell lung carcinoma in vitro and in vivo. Authors - Yu-Jia Liu View Article
human	WB	Chin Med Shikonin and 4-hydroxytamoxifen synergistically inhibit the proliferation of breast cancer cells through activating apoptosis signaling pathway in vitro and in vivo. Authors - Hong-Yan Lin View Article
human	WB	Acta Biochim Biophys Sin (Shanghai) Cathelicidin PR-39 peptide inhibits hypoxia/reperfusion-induced kidney cell apoptosis by suppression of the endoplasmic reticulum-stress pathway. Authors - Jing Liu View Article
rat	IHC	Mol Med Rep Mechanisms underlying the protective effect of tannic acid against arsenic trioxide‑induced cardiotoxicity in rats: Potential involvement of mitochondrial apoptosis. Authors - Yucong Xue View Article
