CoraLite®594-conjugated ERK1/2 Monoclonal antibody

ERK1/2 Monoclonal Antibody for IF/ICC

Host / Isotype

Mouse / IgG1

Reactivity

human, mouse

Applications

IF/ICC

Conjugate

CoraLite®594 Fluorescent Dye

CloneNo.

4G8A11

Cat no : CL594-66192

Print datasheet

Synonyms

ERK1, ERK, ERK2, ERK-1, EC:2.7.11.24

验证数据展示

  • IF Staining of HeLa using CL594-66192

    IF Staining of HeLa using CL594-66192

    Immunofluorescent analysis of (-20°C Methanol) fixed HeLa cells using CoraLite®594 ERK1/2 antibody (CL594-66192, Clone: 4G8A11 ) at dilution of 1:200.

  • FC experiment of HeLa using CL594-66192

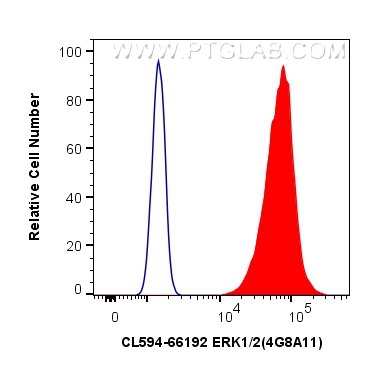

    FC experiment of HeLa using CL594-66192

    1X10^6 HeLa cells were intracellularly stained with 0.4 ug CoraLite®594 Anti-Human ERK1/2 (CL594-66192, Clone:4G8A11) (red), or 0.4 ug Control Antibody. Cells were fixed with 4% PFA and permeabilized with Flow Cytometry Perm Buffer (PF00011-C).

经过测试的应用

Positive IF/ICC detected inHeLa cells
Positive FC (Intra) detected inHeLa cells
For other applications, we recommend the unconjugated version of this antibody, 66192-1-Ig

推荐稀释比

ApplicationDilution
Immunofluorescence (IF)/ICCIF/ICC : 1:50-1:500
Flow Cytometry (FC) (INTRA)FC (INTRA) : 0.40 ug per 10^6 cells in a 100 µl suspension
It is recommended that this reagent should be titrated in each testing system to obtain optimal results.
Sample-dependent, Check data in validation data gallery.

产品信息

CL594-66192 targets ERK1/2 in IF/ICC applications and shows reactivity with human, mouse samples.

Tested Applications IF/ICC Application Description
Tested Reactivity human, mouse
Immunogen ERK1/2 fusion protein Ag20350 种属同源性预测
Host / Isotype Mouse / IgG1
Class Monoclonal
Type Antibody
Full Name mitogen-activated protein kinase 3
Synonyms ERK1, ERK, ERK2, ERK-1, EC:2.7.11.24
Calculated Molecular Weight 43 kDa
GenBank Accession NumberBC013992
Gene Symbol ERK1
Gene ID (NCBI) 5595
RRIDAB_2883530
Conjugate CoraLite®594 Fluorescent Dye
Excitation/Emission Maxima Wavelengths588 nm / 604 nm
Form Liquid
Purification MethodProtein G purification
UNIPROT IDP27361
Storage Buffer PBS with 50% Glycerol, 0.05% Proclin300, 0.5% BSA, pH 7.3.
Storage ConditionsStore at -20°C. Avoid exposure to light. Stable for one year after shipment. Aliquoting is unnecessary for -20oC storage.

背景介绍

ERK1 and ERK2 belongs to the protein kinase superfamily. It is involved in both the initiation and regulation of meiosis, mitosis, and postmitotic functions in differentiated cells by phosphorylating a number of transcription factors such as ELK-1. ERK1/2 catalized the reaction: ATP + a protein = ADP + a phosphoprotein. It is activated by tyrosine phosphorylation in response to INS and NGF. The antibody is conjugated with CL594, Ex/Em 593 nm/614 nm.

实验方案

Product Specific Protocols
IF protocol for CL594 ERK1/2 antibody CL594-66192Download protocol
Standard Protocols
Click here to view our Standard Protocols
