验证数据展示

  • FC experiment of human PBMCs using 98068-1-RR

    FC experiment of human PBMCs using 98068-1-RR

    1x10^6 unstimulated or PHA stimulated human PBMCs were surface stained with 0.25 ug Anti-Human PD-1/CD279 Rabbit Recombinant Antibody (98068-1-RR, Clone:240724G11) and PE-Conjugated AffiniPure Goat Anti-Rabbit IgG(H+L). Cells were then stained with APC Anti-Human CD3. Cells were not fixed.

  • IHC staining of human tonsillitis using 98068-1-RR

    IHC staining of human tonsillitis using 98068-1-RR

    Immunohistochemical analysis of paraffin-embedded human tonsillitis tissue slide using 98068-1-RR (PD-1/CD279 antibody) at dilution of 1:1000 (under 10x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

    Ready-to-use IHC kits available with PD-1 antibody included
  • IHC staining of human tonsillitis using 98068-1-RR

    IHC staining of human tonsillitis using 98068-1-RR

    Immunohistochemical analysis of paraffin-embedded human tonsillitis tissue slide using 98068-1-RR (PD-1/CD279 antibody) at dilution of 1:1000 (under 40x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

    Ready-to-use IHC kits available with PD-1 antibody included
  • FC experiment of human PBMCs using 98068-1-RR

    FC experiment of human PBMCs using 98068-1-RR

    1x10^6 PHA stimulated human PBMCs were stained with 0.25 ug Anti-Human PD-1/CD279 Rabbit Recombinant Antibody (98068-1-RR, Clone:240724G11)(left) or 0.25 ug PE Anti-Human PD-1/CD279 (J110) (PE-65119, Clone: J110)(right) and PE-Conjugated AffiniPure Goat Anti-Rabbit IgG(H+L), Cells were then stained with APC Anti-Human CD3 (OKT3) Mouse IgG2a Recombinant Antibody (APC-65569, Clone: OKT3). Cells were not fixed.

  • FC experiment of human PBMCs using 98068-1-RR

    FC experiment of human PBMCs using 98068-1-RR

    1x10^6 unstimulated (black) or PHA stimulated human PBMCs (red) were stained with 0.25 ug Anti-Human PD-1/CD279 Rabbit Recombinant Antibody (98068-1-RR, Clone:240724G11) and PE-Conjugated AffiniPure Goat Anti-Rabbit IgG(H+L). 1x10^6 PHA treated human PBMCs were stained with Isotype Control(blue). Cells were not fixed.

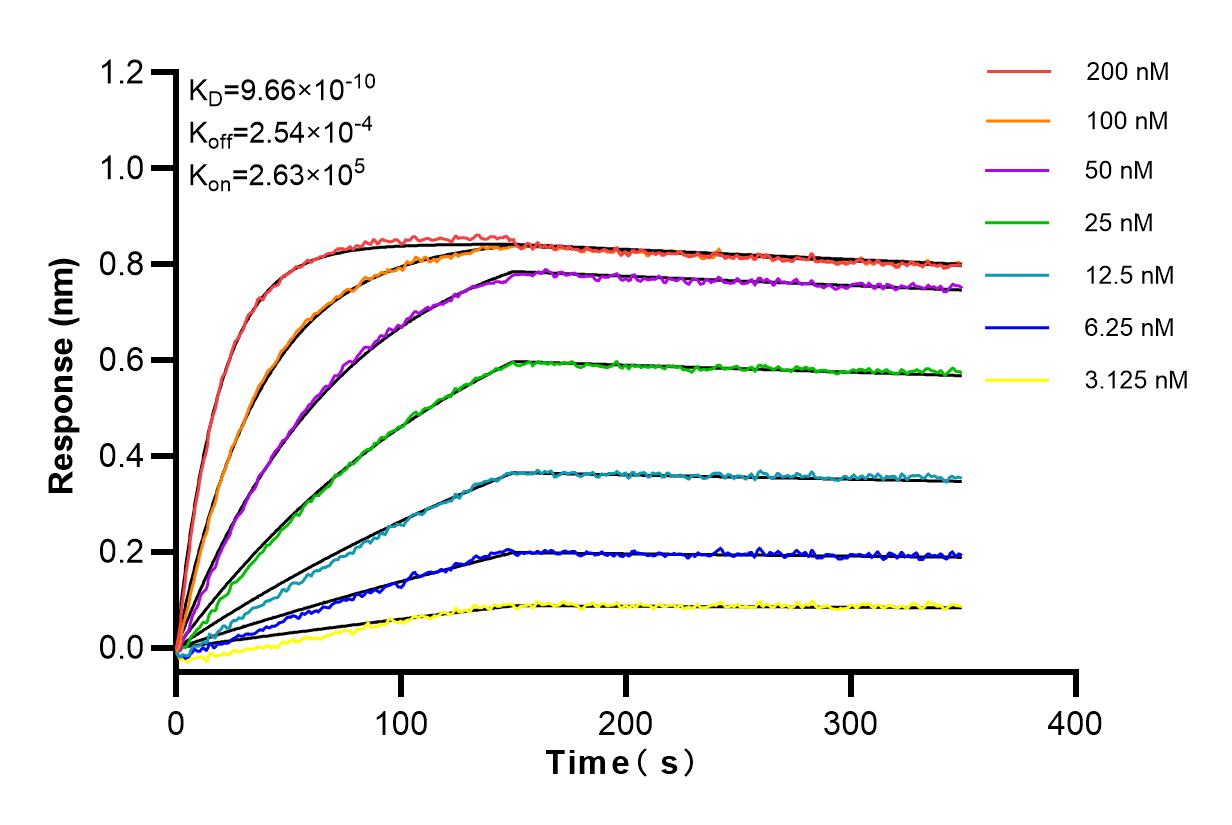

  • Affinity and Kinetic Characterization of 98068-1-RR

    Affinity and Kinetic Characterization of 98068-1-RR

    Biolayer interferometry (BLl) kinetic assays of 98068-1-RR against Human PD-1/CD279 were performed. The affinity constant is 0.966 nM.

Anti-Human PD-1/CD279 Rabbit Recombinant Antibody

PD-1/CD279 Uni-rAbTM Recombinant Antibody for IHC, FC
Cat No. 98068-1-RR

Print datasheet

CloneNo. 240724G11

Host / Isotype

Rabbit / IgG

Reactivity

human

Applications

IHC, FC

Synonyms

CD279, PD1, PD-1, 240724G11, PD 1

Formulation:  PBS and Azide
PBS and Azide
PBS Only
Conjugate:  Unconjugated
Unconjugated
Size:

-/ -

点击咨询售前客服

点击咨询售后客服

经过测试的应用

Positive IHC detected inhuman tonsillitis tissue
Note: suggested antigen retrieval with TE buffer pH 9.0; (*) Alternatively, antigen retrieval may be performed with citrate buffer pH 6.0
Positive FC detected inhuman PBMCs
Planning an IHC experiment? We recommend our IHCeasy PD-1 Ready-To-Use IHC Kit. PD-1 primary antibody included.

推荐稀释比

ApplicationDilution
Immunohistochemistry (IHC)IHC : 1:500-1:2000
This reagent has been tested for flow cytometric analysis. It is recommended that this reagent should be titrated in each testing system to obtain optimal results.
Sample-dependent, Check data in validation data gallery.

产品信息

98068-1-RR targets PD-1/CD279 in IHC, FC applications and shows reactivity with human samples.

Tested Applications IHC, FC Application Description
Tested Reactivity human
Immunogen Recombinant protein 种属同源性预测
Host / Isotype Rabbit / IgG
Class Recombinant
Type Antibody
Full Name programmed cell death 1
Synonyms CD279, PD1, PD-1, 240724G11, PD 1
Calculated Molecular Weight 288 aa, 32 kDa
GenBank Accession NumberBC074740
Gene Symbol PD-1
Gene ID (NCBI) 5133
RRIDAB_3672215
Conjugate Unconjugated
Form Liquid
Purification MethodProtein A purfication
UNIPROT IDQ15116
Storage Buffer PBS with 0.09% sodium azide, pH 7.3.
Storage ConditionsStore at 2 - 8°C. Stable for one year after shipment.

背景介绍

Programmed cell death 1 (PD-1, also known as CD279) is an immunoinhibitory receptor that belongs to the CD28/CTLA-4 subfamily of the Ig superfamily. It is a 288 amino acid (aa) type I transmembrane protein composed of one Ig superfamily domain, a stalk, a transmembrane domain, and an intracellular domain containing an immunoreceptor tyrosine-based inhibitory motif (ITIM) as well as an immunoreceptor tyrosine-based switch motif (ITSM) (PMID: 18173375). PD-1 is expressed during thymic development and is induced in a variety of hematopoietic cells in the periphery by antigen receptor signaling and cytokines (PMID: 20636820). Engagement of PD-1 by its ligands PD-L1 or PD-L2 transduces a signal that inhibits T-cell proliferation, cytokine production, and cytolytic function (PMID: 19426218). It is critical for the regulation of T cell function during immunity and tolerance. Blockade of PD-1 can overcome immune resistance and also has been shown to have antitumor activity (PMID: 22658127; 23169436). It has been reported that PD-1 is heavily glycosylated and migrates with an apparent molecular mass of 47-55 kDa on SDS-PAGE , which is larger than its predicted mass of 32 kDa (PMID: 8671665; 17640856; 17003438).

实验方案

Product Specific Protocols
IHC protocol for PD-1/CD279 antibody 98068-1-RRDownload protocol
FC protocol for PD-1/CD279 antibody 98068-1-RRDownload protocol
