PDE5A Polyclonal antibody

PDE5A Polyclonal Antibody for WB, IHC, IF/ICC, ELISA

Host / Isotype

Rabbit / IgG

Reactivity

human, mouse and More (2)

Applications

WB, IHC, IF/ICC, ELISA and More (1)

Conjugate

Unconjugated

Cat no : 22624-1-AP

Print datasheet

Synonyms

CGB PDE, CN5A, PDE5, PDE5A, PDE5A1, phosphodiesterase 5A, cGMP



经过测试的应用

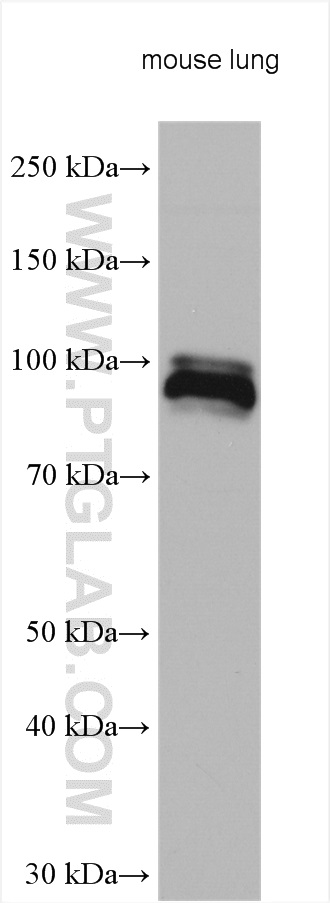

Positive WB detected inmouse lung tissue

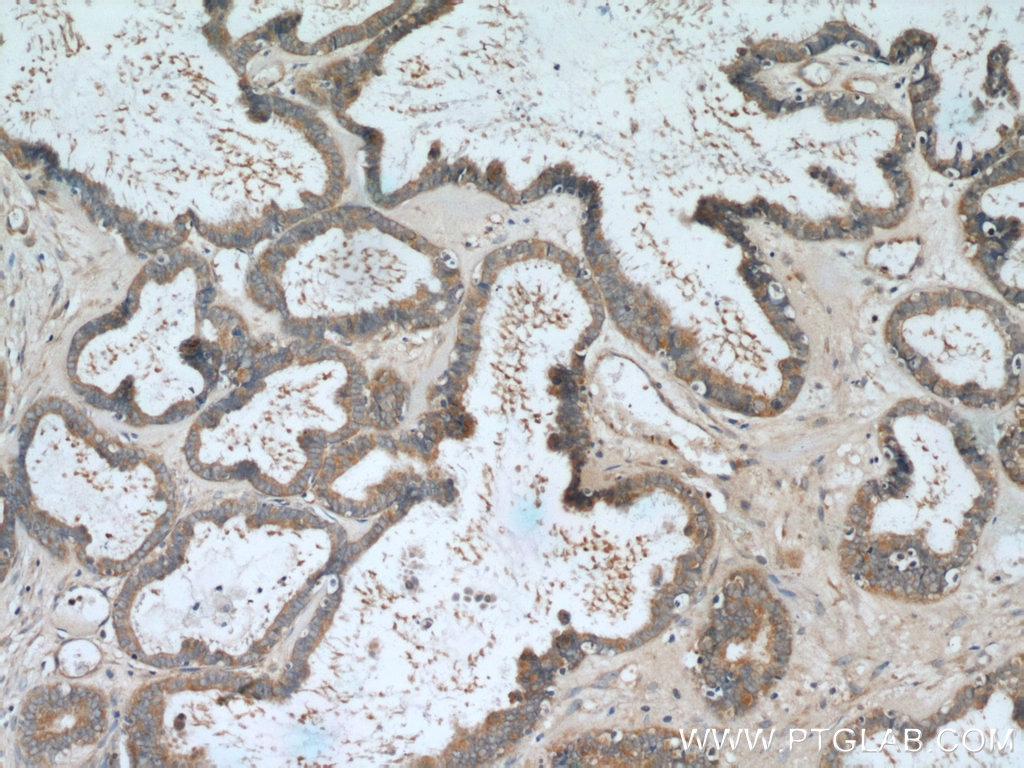

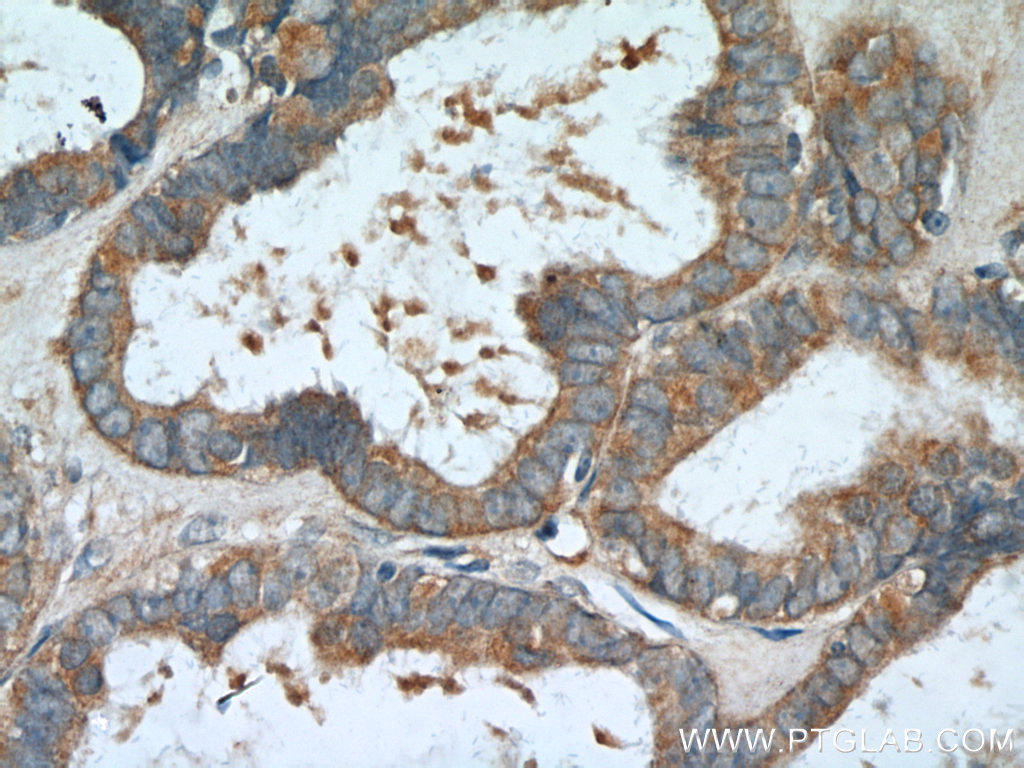

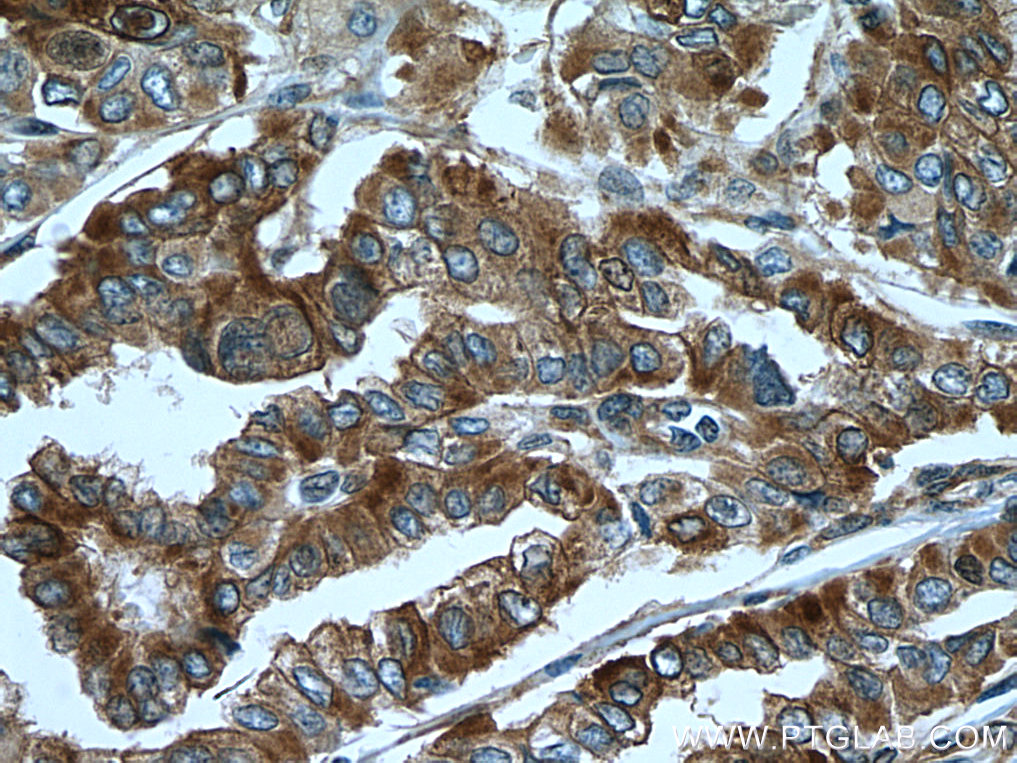

Positive IHC detected inhuman ovary tumor tissue, human thyroid cancer tissue
Note: suggested antigen retrieval with TE buffer pH 9.0; (*) Alternatively, antigen retrieval may be performed with citrate buffer pH 6.0

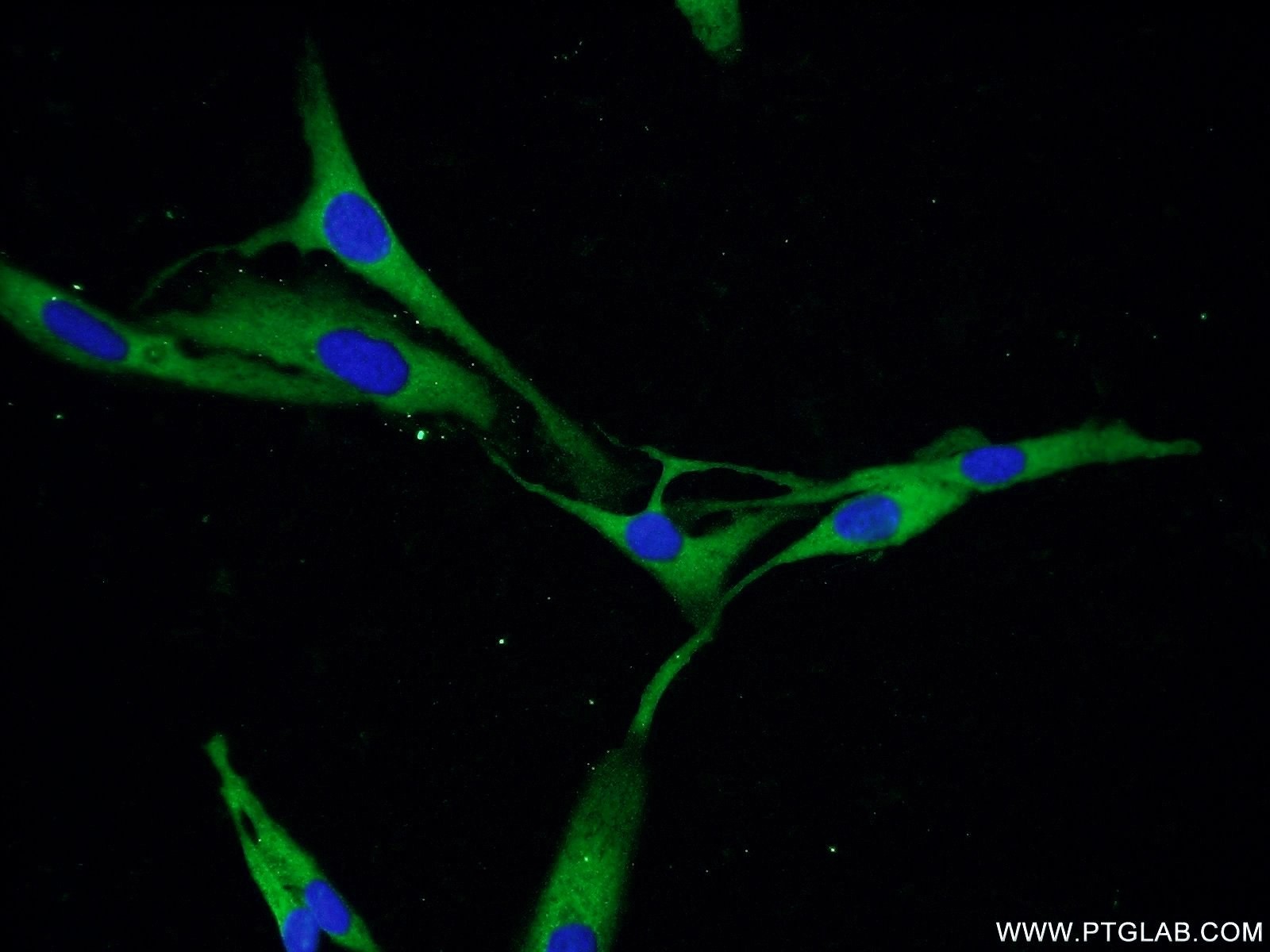

Positive IF/ICC detected inSKOV-3 cells
Planning an IHC experiment? We recommend our IHCeasy PDE5A Ready-To-Use IHC Kit. PDE5A primary antibody included.

推荐稀释比

ApplicationDilution
Western Blot (WB)WB : 1:1000-1:6000
Immunohistochemistry (IHC)IHC : 1:50-1:500
Immunofluorescence (IF)/ICCIF/ICC : 1:20-1:200
It is recommended that this reagent should be titrated in each testing system to obtain optimal results.
Sample-dependent, Check data in validation data gallery.

产品信息

The immunogen of 22624-1-AP is PDE5A Fusion Protein expressed in E. coli.

Tested Applications WB, IHC, IF/ICC, ELISA Application Description
Cited ApplicationsWB, IHC, IF
Tested Reactivity human, mouse
Cited Reactivityhuman, mouse, rabbit, bovine
Immunogen PDE5A fusion protein Ag18779 种属同源性预测
Host / Isotype Rabbit / IgG
Class Polyclonal
Type Antibody
Full Name phosphodiesterase 5A, cGMP-specific
Synonyms CGB PDE, CN5A, PDE5, PDE5A, PDE5A1, phosphodiesterase 5A, cGMP
Calculated Molecular Weight 875 aa, 100 kDa
Observed Molecular Weight 100 kDa
GenBank Accession NumberBC126233
Gene Symbol PDE5A
Gene ID (NCBI) 8654
RRIDAB_2879137
Conjugate Unconjugated
Form Liquid
Purification MethodAntigen affinity purification
UNIPROT IDO76074
Storage Buffer PBS with 0.02% sodium azide and 50% glycerol pH 7.3.
Storage ConditionsStore at -20°C. Stable for one year after shipment. Aliquoting is unnecessary for -20oC storage.

背景介绍

PDE5A (cGMP-binding cGMP-specific phosphodiesterase) plays a role in signal transduction by regulating the intracellular concentration of cyclic nucleotides. This phosphodiesterase catalyzes the specific hydrolysis of cGMP to 5'-GMP. Through alternative splicing, the PDE5A gene produces three proteins (PDE5A1, PDE5A2, and PDE5A3) that differ in their N termini and range in mass from 89 to 105 kDa. (PMID: 25704994; 21215707). A second 70 kDa band was consistently observed in heart tissue that either reflected a splice variant or proteolytic fragment of PDE5A. (PMID: 15576651).

实验方案

Product Specific Protocols
WB protocol for PDE5A antibody 22624-1-APDownload protocol
IHC protocol for PDE5A antibody 22624-1-APDownload protocol
IF protocol for PDE5A antibody 22624-1-APDownload protocol
Standard Protocols
Click here to view our Standard Protocols

发表文章

SpeciesApplicationTitle
IF

Am J Respir Cell Mol Biol

Decreased Cyclic GMP-protein Kinase G signaling impairs Angiogenesis in a Lamb Model of Persistent Pulmonary Hypertension of Newborn.

Authors - Megha Sharma
bovineWB

Front Cell Dev Biol

Myostatin Mutation Promotes Glycolysis by Increasing Phosphorylation of Phosphofructokinase via Activation of PDE5A-cGMP-PKG in Cattle Heart.

Authors - Mingjuan Gu
mouseWB,IHC

Front Cell Dev Biol

An MRTF-A-Sp1-PDE5 Axis Mediates Angiotensin-II-Induced Cardiomyocyte Hypertrophy.

Authors - Teng Wu
rabbitWB

Am J Physiol Gastrointest Liver Physiol

Augmentation of cGMP/PKG Pathway and Colonic Motility by Hydrogen Sulfide.

Authors - Ancy D Nalli
humanWB, IHC

PeerJ

Identification of potential genes in upper tract urothelial carcinoma using next-generation sequencing with bioinformatics and in vitro analyses.

Authors - Hsiang-Ying Lee
mouseWB

J Ethnopharmacol

Zhenwu decoction ameliorates cardiac hypertrophy through activating sGC (soluble guanylate cyclase) - cGMP (cyclic guanosine monophosphate) - PKG (protein kinase G) pathway

Authors - Liqian Chen
