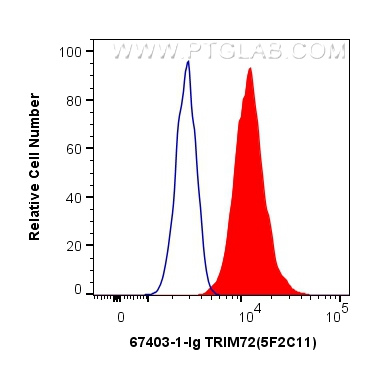

1X10^6 C2C12 cells were intracellularly stained with 0.4 ug Anti-Human TRIM72 (67403-1-Ig, Clone:5F2C11) and CoraLite®488-Conjugated AffiniPure Goat Anti-Mouse IgG(H+L) at dilution 1:1000 (red), or 0.4 ug Mouse IgG1 Isotype Control (MOPC-21) (65124-1-Ig, Clone: MOPC-21) (blue). Cells were fixed with 4% PFA and permeabilized with Flow Cytometry Perm Buffer (PF00011-C). This data was developed using the same antibody clone with 67403-1-PBS in a different storage buffer formulation.

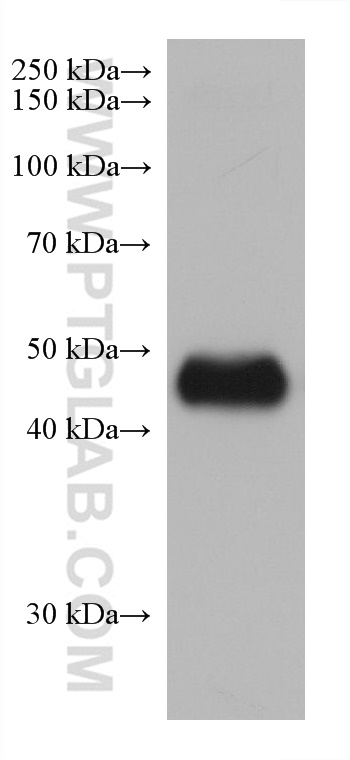

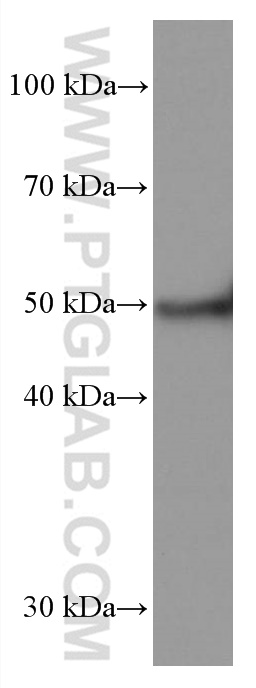

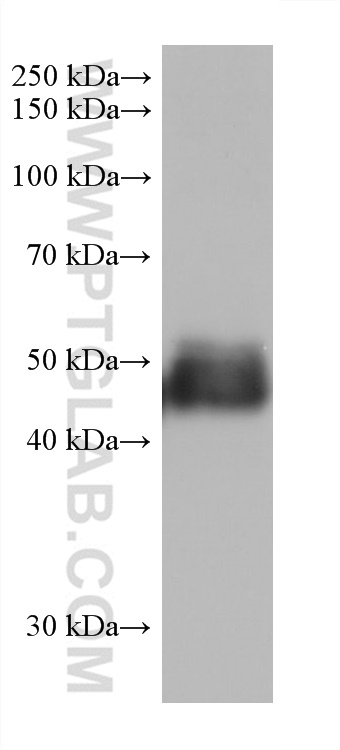

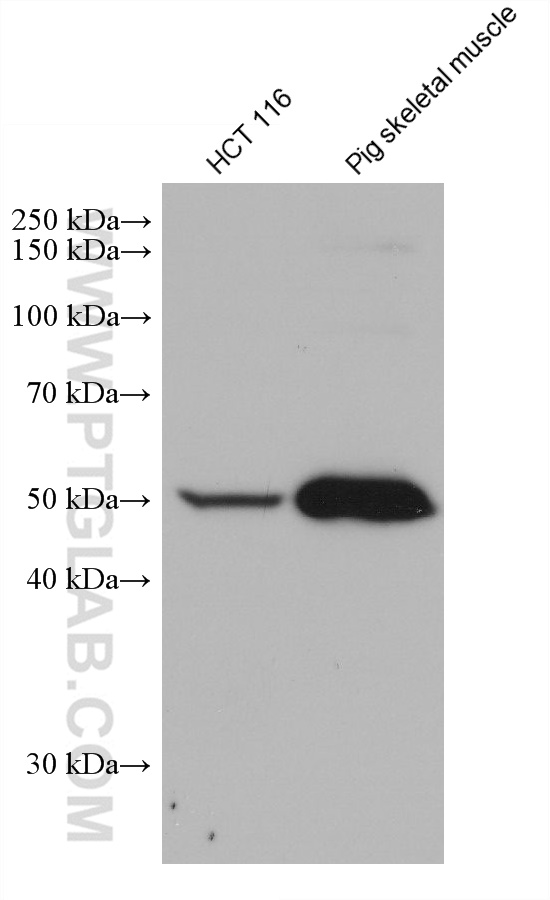

Various lysates were subjected to SDS PAGE followed by western blot with 67403-1-Ig (TRIM72 antibody) at dilution of 1:3000 incubated at room temperature for 1.5 hours. This data was developed using the same antibody clone with 67403-1-PBS in a different storage buffer formulation.

Immunofluorescent analysis of (4% PFA) fixed paraffin-embedded mouse skeletal muscle tissue using TRIM72 antibody (67403-1-Ig, Clone: 5F2C11 ) at dilution of 1:400 and CoraLite®488-Conjugated Goat Anti-Mouse IgG(H+L) (SA00013-1). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0). This data was developed using the same antibody clone with 67403-1-PBS in a different storage buffer formulation.
