CoraLite® Plus 488-conjugated DRP1 (N-terminal) Polyclonal antibody

DRP1 (N-terminal) Polyclonal Antibody for IF/ICC

Host / Isotype

Rabbit / IgG

Reactivity

human, mouse

Applications

IF/ICC

Conjugate

CoraLite® Plus 488 Fluorescent Dye

Cat no : CL488-26187

Print datasheet

Synonyms

DRP1, Dymple, Dnm1p/Vps1p-like protein, DNM1L,DLP1, DNM1L

验证数据展示

  • IF Staining of HeLa using CL488-26187

    IF Staining of HeLa using CL488-26187

    Immunofluorescent analysis of (-20°C Ethanol) fixed HeLa cells using CoraLite® Plus 488 DRP1 (N-terminal) antibody (CL488-26187) at dilution of 1:200.

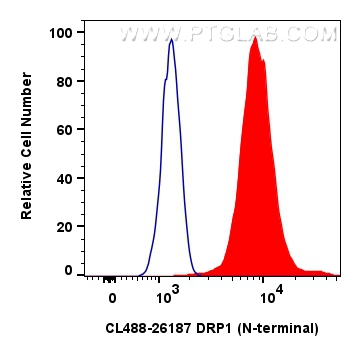

  • FC experiment of HeLa using CL488-26187

    FC experiment of HeLa using CL488-26187

    1x10^6 HeLa cells were intracellularly stained with 0.4 ug CoraLite® Plus 488-conjugated DRP1 (N-terminal) Polyclonal antibody (CL488-26187)(red), or 0.4 ug CoraLite® Plus 488-conjugated Rabbit IgG control Rabbit PolyAb (CL488-30000) (blue). Cells were fixed with 4% PFA and permeabilized with Flow Cytometry Perm Buffer (PF00011-C).

经过测试的应用

Positive IF/ICC detected inHeLa cells
Positive FC (Intra) detected inHeLa cells
For other applications, we recommend the unconjugated version of this antibody, 26187-1-AP

推荐稀释比

ApplicationDilution
Immunofluorescence (IF)/ICCIF/ICC : 1:50-1:500
Flow Cytometry (FC) (INTRA)FC (INTRA) : 0.40 ug per 10^6 cells in a 100 µl suspension
It is recommended that this reagent should be titrated in each testing system to obtain optimal results.
Sample-dependent, Check data in validation data gallery.

产品信息

CL488-26187 targets DRP1 (N-terminal) in IF/ICC applications and shows reactivity with human, mouse samples.

Tested Applications IF/ICC Application Description
Tested Reactivity human, mouse
Immunogen DRP1 (N-terminal) fusion protein Ag24249 种属同源性预测
Host / Isotype Rabbit / IgG
Class Polyclonal
Type Antibody
Full Name dynamin 1-like
Synonyms DRP1, Dymple, Dnm1p/Vps1p-like protein, DNM1L,DLP1, DNM1L
Calculated Molecular Weight 736 aa, 82 kDa
Observed Molecular Weight 70-78 kDa
GenBank Accession NumberBC024590
Gene Symbol DRP1
Gene ID (NCBI) 10059
RRIDAB_2919207
Conjugate CoraLite® Plus 488 Fluorescent Dye
Excitation/Emission Maxima Wavelengths493 nm / 522 nm
Form Liquid
Purification MethodAntigen affinity purification
UNIPROT IDO00429
Storage Buffer PBS with 50% Glycerol, 0.05% Proclin300, 0.5% BSA, pH 7.3.
Storage ConditionsStore at -20°C. Avoid exposure to light. Stable for one year after shipment. Aliquoting is unnecessary for -20oC storage.

背景介绍

DNM1L(Dynamin-1-like protein) , also known as dynamin-related protein 1 (DRP1), belongs to the dynamin family of large GTPases that mediate membrane remodeling during a variety of cellular processes. DNM1L has an important role in the division of growing mitochondria and peroxisomes and also mediates outer mitochondrial membrane fission in mammalian cells. DNM1L is ubiquitously expressed with abundant expression in skeletal muscle, heart, kidney and brain.Variable isoforms of DNM1L have been reported in a tissue-specific manner due to the alternative splicing.

实验方案

Product Specific Protocols
IF protocol for CL Plus 488 DRP1 (N-terminal) antibody CL488-26187Download protocol
FC protocol for CL Plus 488 DRP1 (N-terminal) antibody CL488-26187Download protocol
Standard Protocols
Click here to view our Standard Protocols
