CoraLite® Plus 647-conjugated PD-1/CD279 Monoclonal antibody
PD-1/CD279 Monoclonal Antibody for IF-P, FC
Host / Isotype
Mouse / IgG2b
Reactivity
human, mouse, rat
Applications
IF-P, FC and More (1)
Conjugate
CoraLite® Plus 647 Fluorescent Dye
CloneNo.
4H4D1
验证数据展示
经过测试的应用
| Positive IF-P detected in | human tonsillitis tissue |

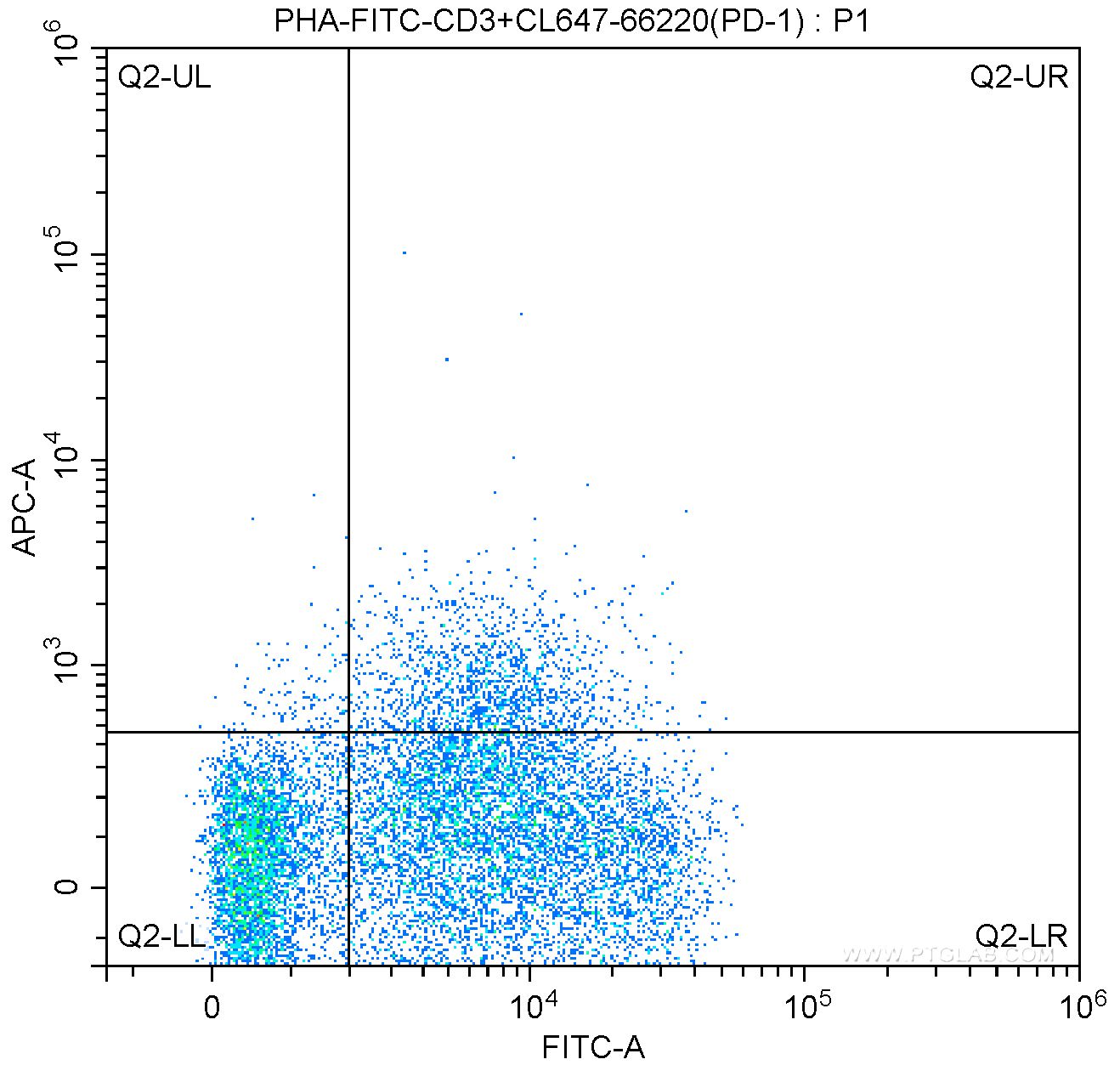

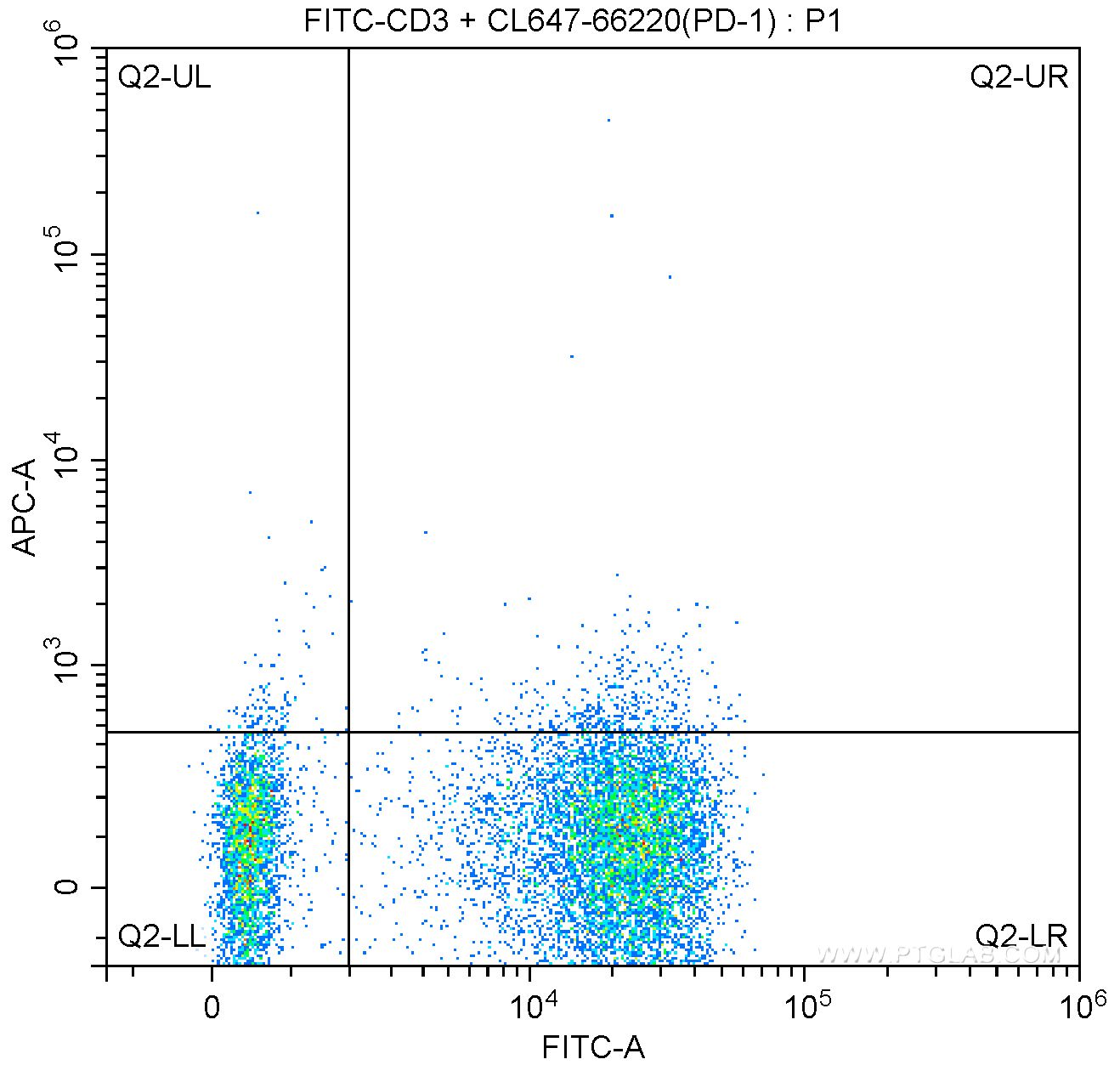

| Positive FC detected in | human PBMCs, PBMC |
Planning an IHC experiment? We recommend our IHCeasy PD-1 Ready-To-Use IHC Kit. PD-1 primary antibody included.
For other applications, we recommend the unconjugated version of this antibody, 66220-1-Ig
推荐稀释比
| Application | Dilution |
|---|---|
| Immunofluorescence (IF)-P | IF-P : 1:50-1:500 |
| Flow Cytometry (FC) | FC : 0.20 ug per 10^6 cells in a 100 µl suspension |
| It is recommended that this reagent should be titrated in each testing system to obtain optimal results. | |
| Sample-dependent, Check data in validation data gallery. | |
发表文章中的应用
| IF | See 1 publications below |
| FC | See 1 publications below |
产品信息
CL647-66220 targets PD-1/CD279 in IF-P, FC applications and shows reactivity with human, mouse, rat samples.
| Tested Applications | IF-P, FC Application Description |
| Cited Applications | IF, FC |
| Tested Reactivity | human, mouse, rat |
| Cited Reactivity | mouse, rat |
| Immunogen | PD-1/CD279 fusion protein Ag12470 种属同源性预测 |
| Host / Isotype | Mouse / IgG2b |
| Class | Monoclonal |
| Type | Antibody |
| Full Name | programmed cell death 1 |
| Synonyms | CD279, PD1, PD-1, 4H4D1, PD 1 |
| Calculated Molecular Weight | 288 aa, 32 kDa |
| GenBank Accession Number | BC074740 |
| Gene Symbol | PD-1 |
| Gene ID (NCBI) | 5133 |
| RRID | AB_2883732 |
| Conjugate | CoraLite® Plus 647 Fluorescent Dye |
| Excitation/Emission Maxima Wavelengths | 654 nm / 674 nm |
| Form | Liquid |
| Purification Method | Protein A purification |
| UNIPROT ID | Q15116 |
| Storage Buffer | PBS with 50% Glycerol, 0.05% Proclin300, 0.5% BSA, pH 7.3. |
| Storage Conditions | Store at -20°C. Avoid exposure to light. Stable for one year after shipment. Aliquoting is unnecessary for -20oC storage. |
背景介绍
Programmed cell death 1 (PD-1, also known as CD279) is an immunoinhibitory receptor that belongs to the CD28/CTLA-4 subfamily of the Ig superfamily. It is a 288 amino acid (aa) type I transmembrane protein composed of one Ig superfamily domain, a stalk, a transmembrane domain, and an intracellular domain containing an immunoreceptor tyrosine-based inhibitory motif (ITIM) as well as an immunoreceptor tyrosine-based switch motif (ITSM) (PMID: 18173375). PD-1 is expressed during thymic development and is induced in a variety of hematopoietic cells in the periphery by antigen receptor signaling and cytokines (PMID: 20636820). Engagement of PD-1 by its ligands PD-L1 or PD-L2 transduces a signal that inhibits T-cell proliferation, cytokine production, and cytolytic function (PMID: 19426218). It is critical for the regulation of T cell function during immunity and tolerance. Blockade of PD-1 can overcome immune resistance and also has been shown to have antitumor activity (PMID: 22658127; 23169436). The calculated molecular weight of PD-1 is 32 kDa. It has been reported that PD-1 is heavily glycosylated and migrates with an apparent molecular mass of 47-55 kDa on SDS-PAGE (PMID: 8671665; 17640856; 17003438).
实验方案
| Product Specific Protocols | |
|---|---|
| IF protocol for CL Plus 647 PD-1/CD279 antibody CL647-66220 | Download protocol |
| Standard Protocols | |
|---|---|
| Click here to view our Standard Protocols |
发表文章
| Species | Application | Title |
|---|---|---|
Clin Cancer Res 18F-FMISO PET Imaging Identifies Hypoxia and Immunosuppressive Tumor Microenvironments and Guides Targeted Evofosfamide Therapy in Tumors Refractory to PD-1 and CTLA-4 Inhibition. | ||
Transplantation Activation of the Aryl Hydrocarbon Receptor Ameliorates Acute Rejection of Rat Liver Transplantation by Regulating Treg Proliferation and PD-1 Expression. |
