SHP2 Monoclonal antibody

SHP2 Monoclonal Antibody for WB, IHC, IF/ICC, FC (Intra), ELISA

Host / Isotype

Mouse / IgG1

Reactivity

human, mouse, rat

Applications

WB, IHC, IF/ICC, FC (Intra), ELISA

Conjugate

Unconjugated

CloneNo.

3F8A8

Cat no : 66795-1-Ig

Print datasheet

Synonyms

PTPN11/SHP2, PTPN11, NS1, NS 1, EC:3.1.3.48

验证数据展示

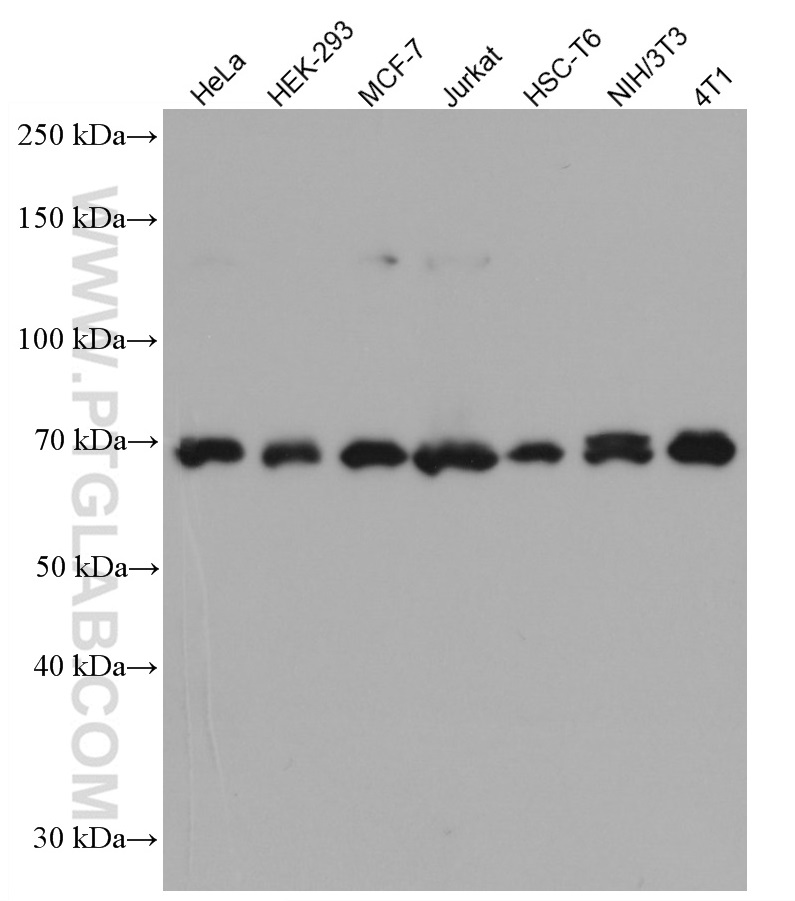

  • WB analysis using 66795-1-Ig

    WB analysis using 66795-1-Ig

    Various lysates were subjected to SDS PAGE followed by western blot with 66795-1-Ig (PTPN11 antibody) at dilution of 1:2000 incubated at room temperature for 1.5 hours.

  • IHC staining of mouse testis using 66795-1-Ig

    IHC staining of mouse testis using 66795-1-Ig

    Immunohistochemical analysis of paraffin-embedded mouse testis tissue slide using 66795-1-Ig (PTPN11 antibody) at dilution of 1:200 (under 10x lens. Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

    Ready-to-use IHC kits available with PTPN11 antibody included
  • IHC staining of mouse testis using 66795-1-Ig

    IHC staining of mouse testis using 66795-1-Ig

    Immunohistochemical analysis of paraffin-embedded mouse testis tissue slide using 66795-1-Ig (PTPN11 antibody) at dilution of 1:200 (under 40x lens. Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

    Ready-to-use IHC kits available with PTPN11 antibody included

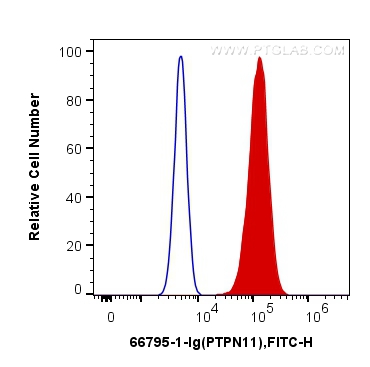

  • FC experiment of MCF-7 using 66795-1-Ig

    FC experiment of MCF-7 using 66795-1-Ig

    1X10^6 MCF-7 cells were intracellularly stained with 0.4 ug Anti-Human PTPN11 (66795-1-Ig, Clone:3F8A8) and CoraLite®488-Conjugated AffiniPure Goat Anti-Mouse IgG(H+L) at dilution 1:1000 (red), or 0.4 ug Control Antibody. Cells were fixed with 4% PFA and permeabilized with Flow Cytometry Perm Buffer (PF00011-C).

  • IF Staining of MCF-7 using 66795-1-Ig

    IF Staining of MCF-7 using 66795-1-Ig

    Immunofluorescent analysis of (-20°C Methanol) fixed MCF-7 cells using PTPN11/SHP2 antibody (66795-1-Ig, Clone: 3F8A8 ) at dilution of 1:800 and CoraLite®488-Conjugated AffiniPure Goat Anti-Mouse IgG(H+L) (SA00013-1).

经过测试的应用

Positive WB detected inHeLa cells, HEK-293 cells, MCF-7 cells, Jurkat cells, HSC-T6 cells, NIH/3T3 cells, 4T1 cells
Positive IHC detected inmouse testis tissue
Note: suggested antigen retrieval with TE buffer pH 9.0; (*) Alternatively, antigen retrieval may be performed with citrate buffer pH 6.0
Positive IF/ICC detected inMCF-7 cells
Positive FC (Intra) detected inMCF-7 cells
Planning an IHC experiment? We recommend our IHCeasy PTPN11 Ready-To-Use IHC Kit. PTPN11 primary antibody included.
Planning an IF experiment? We recommend our CoraLite® Plus 488, CoraLite®555 and CoraLite®594 conjugated versions of this antibody.

推荐稀释比

ApplicationDilution
Western Blot (WB)WB : 1:1000-1:4000
Immunohistochemistry (IHC)IHC : 1:50-1:500
Immunofluorescence (IF)/ICCIF/ICC : 1:400-1:1600
Flow Cytometry (FC) (INTRA)FC (INTRA) : 0.40 ug per 10^6 cells in a 100 µl suspension
It is recommended that this reagent should be titrated in each testing system to obtain optimal results.
Sample-dependent, Check data in validation data gallery.

产品信息

66795-1-Ig targets SHP2 in WB, IHC, IF/ICC, FC (Intra), ELISA applications and shows reactivity with human, mouse, rat samples.

Tested Applications WB, IHC, IF/ICC, FC (Intra), ELISA Application Description
Tested Reactivity human, mouse, rat
Immunogen SHP2 fusion protein Ag13649 种属同源性预测
Host / Isotype Mouse / IgG1
Class Monoclonal
Type Antibody
Full Name protein tyrosine phosphatase, non-receptor type 11
Synonyms PTPN11/SHP2, PTPN11, NS1, NS 1, EC:3.1.3.48
Calculated Molecular Weight 597 aa, 68 kDa
Observed Molecular Weight 68 kDa
GenBank Accession NumberBC008692
Gene Symbol PTPN11
Gene ID (NCBI) 5781
RRIDAB_2882139
Conjugate Unconjugated
Form Liquid
Purification MethodProtein A purification
UNIPROT IDQ06124
Storage Buffer PBS with 0.02% sodium azide and 50% glycerol pH 7.3.
Storage ConditionsStore at -20°C. Stable for one year after shipment. Aliquoting is unnecessary for -20oC storage.

背景介绍

PTPN11 (protein tyrosine phosphatase, non-receptor type 11) is also named as PTP-1D, PTP2, PTP2C, PTP3, SHP2, CFC, CFC, BPTP3, SH-PTP2, SH-PTP3, MGC14433 and belongs to the protein-tyrosine phosphatase family and non-receptor class 2 subfamily. It modulates and regulates signaling through numerous pathways, many of which are active in the developing endocardial cushions and implicated the ERK pathway as a central mechanism (PMID: 19017799). Its signaling may play equally important roles in retinal survival in both physiological and pathological conditions (PMID: 21576358). Defects in PTPN11 are the cause of LEOPARD syndrome type 1 (LEOPARD1), Noonan syndrome type 1 (NS1), juvenile myelomonocytic leukemia (JMML) and metachondromatosis (MC). It has 3 isoforms produced by alternative splicing.

实验方案

Product Specific Protocols
WB protocol for SHP2 antibody 66795-1-IgDownload protocol
IHC protocol for SHP2 antibody 66795-1-IgDownload protocol
IF protocol for SHP2 antibody 66795-1-IgDownload protocol
Standard Protocols
Click here to view our Standard Protocols
