CoraLite® Plus 488-conjugated SCN5A Monoclonal antibody

SCN5A Monoclonal Antibody for FC (Intra)

Host / Isotype

Mouse / IgG1

Reactivity

Human, Rat, Rabbit

Applications

FC (Intra)

Conjugate

CoraLite® Plus 488 Fluorescent Dye

CloneNo.

1C2B3

Cat no : CL488-68273

Print datasheet

Synonyms

Nav1.5, HH1, CMPD2, CMD1E, CDCD2



经过测试的应用

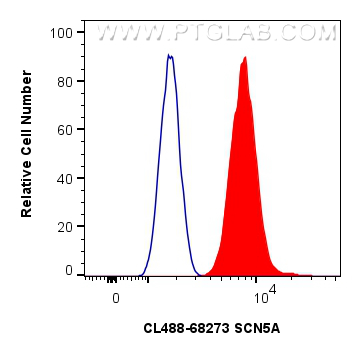

Positive FC (Intra) detected inHeLa cells
For other applications, we recommend the unconjugated version of this antibody, 68273-1-Ig

推荐稀释比

ApplicationDilution
Flow Cytometry (FC) (INTRA)FC (INTRA) : 0.40 ug per 10^6 cells in a 100 µl suspension
It is recommended that this reagent should be titrated in each testing system to obtain optimal results.
Sample-dependent, Check data in validation data gallery.

产品信息

CL488-68273 targets SCN5A in FC (Intra) applications and shows reactivity with Human, Rat, Rabbit samples.

Tested Applications FC (Intra) Application Description
Tested Reactivity Human, Rat, Rabbit
Immunogen SCN5A fusion protein Ag19275 种属同源性预测
Host / Isotype Mouse / IgG1
Class Monoclonal
Type Antibody
Full Name sodium channel, voltage-gated, type V, alpha subunit
Synonyms Nav1.5, HH1, CMPD2, CMD1E, CDCD2
Calculated Molecular Weight 2016 aa, 227 kDa
Observed Molecular Weight227 kDa
GenBank Accession NumberBC140813
Gene Symbol SCN5A
Gene ID (NCBI) 6331
Conjugate CoraLite® Plus 488 Fluorescent Dye
Excitation/Emission Maxima Wavelengths493 nm / 522 nm
Form Liquid
Purification MethodProtein G purification
UNIPROT IDQ14524
Storage Buffer PBS with 50% Glycerol, 0.05% Proclin300, 0.5% BSA, pH 7.3.
Storage ConditionsStore at -20°C. Avoid exposure to light. Stable for one year after shipment. Aliquoting is unnecessary for -20oC storage.

背景介绍

Voltage-gated sodium channels are responsible for initiation and propagation of action potentials in the membranes of neurons and most electrically excitable cells (PMID: 10798388). These channels are composed of a large alpha subunit that forms the ion conduction pore and auxiliary beta subunits (PMID: 11486343). The alpha subunits form a gene family with at least 10 members. Nav1.5, encoded by the SCN5A gene in humans, is a pore forming alpha subunit of voltage-gated sodium channels. Nav1.5 is the principal Na+ channel isoform expressed in cardiomyocytes. Mutations in SCN5A gene have been linked to many cardiac electrical disorders, including the congenital and acquired long QT syndrome, Brugada syndrome, conduction slowing, sick sinus syndrome, atrial fibrillation, and dilated cardiomyopathy (PMID: 23123192).

实验方案

Product Specific Protocols
FC protocol for CL Plus 488 SCN5A antibody CL488-68273Download protocol
Standard Protocols
Click here to view our Standard Protocols
