CoraLite®594-conjugated Tom22 Monoclonal antibody

Tom22 Monoclonal Antibody for WB, FC (Intra)

Host / Isotype

Mouse / IgG2a

Reactivity

human

Applications

WB, FC (Intra)

Conjugate

CoraLite®594 Fluorescent Dye

CloneNo.

1C2B11

Cat no : CL594-66562

Print datasheet

Synonyms

TOMM22, MSTP065, MST065, hTom22, 1C9 2

验证数据展示

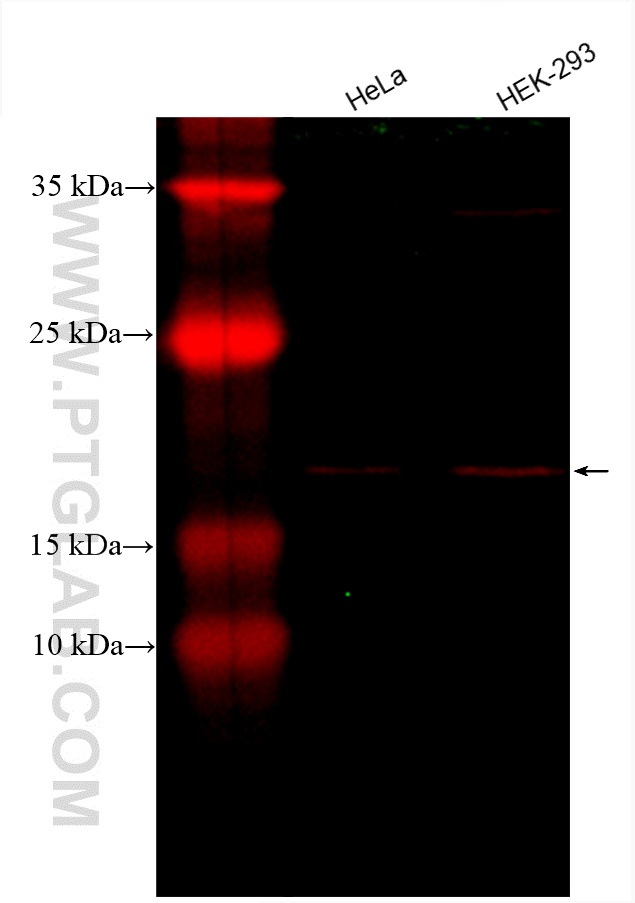

  • WB analysis using CL594-66562

    WB analysis using CL594-66562

    Various lysates were subjected to SDS PAGE followed by western blot with CL594-66562 (TOMM22 antibody) at dilution of 1:500 incubated at room temperature for 1.5 hours.

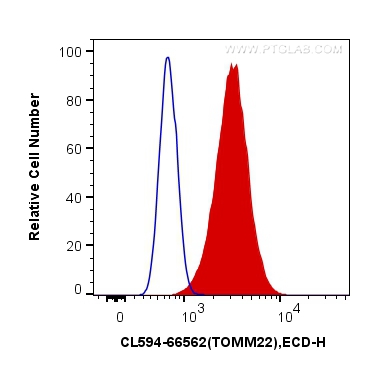

  • FC experiment of HEK-293 using CL594-66562

    FC experiment of HEK-293 using CL594-66562

    1X10^6 HEK-293 cells were intracellularly stained with 0.4 ug CoraLite®594 Anti-Human Tom22 (CL594-66562, Clone:1C2B11) (red), or 0.4 ug Mouse IgG2a Isotype Control (CL594-66360-2, Clone: K11A1B2A2) (blue). Cells were fixed with 4% PFA and permeabilized with Flow Cytometry Perm Buffer (PF00011-C).

经过测试的应用

Positive WB detected inHeLa cells, HEK-293 cells
Positive FC (Intra) detected inHEK-293 cells
For other applications, we recommend the unconjugated version of this antibody, 66562-1-Ig

推荐稀释比

ApplicationDilution
Western Blot (WB)WB : 1:500-1:1000
Flow Cytometry (FC) (INTRA)FC (INTRA) : 0.40 ug per 10^6 cells in a 100 µl suspension
It is recommended that this reagent should be titrated in each testing system to obtain optimal results.
Sample-dependent, Check data in validation data gallery.

产品信息

CL594-66562 targets Tom22 in WB, FC (Intra) applications and shows reactivity with human samples.

Tested Applications WB, FC (Intra) Application Description
Tested Reactivity human
Immunogen Tom22 fusion protein Ag1797 种属同源性预测
Host / Isotype Mouse / IgG2a
Class Monoclonal
Type Antibody
Full Name translocase of outer mitochondrial membrane 22 homolog (yeast)
Synonyms TOMM22, MSTP065, MST065, hTom22, 1C9 2
Calculated Molecular Weight 15 kDa
Observed Molecular Weight 22 kDa
GenBank Accession NumberBC009363
Gene Symbol TOMM22/Tom22
Gene ID (NCBI) 56993
RRIDAB_2920005
Conjugate CoraLite®594 Fluorescent Dye
Excitation/Emission Maxima Wavelengths588 nm / 604 nm
Form Liquid
Purification MethodProtein A purification
UNIPROT IDQ9NS69
Storage Buffer PBS with 50% Glycerol, 0.05% Proclin300, 0.5% BSA, pH 7.3.
Storage ConditionsStore at -20°C. Avoid exposure to light. Stable for one year after shipment. Aliquoting is unnecessary for -20oC storage.

背景介绍

TOMM22 is a central receptor component of the translocase of the outer membrane of mitochondria responsible for the recognition and translocation of cytosolically synthesized mitochondrial preproteins. It is showed in UniProt that phosphorylation is performed at three positions of this protein which may increase the molecular weight. Catalog#66562-1-Ig recognises  the  22 kDa  protein larger than the calculated MW which is 15 kDa. Besides, it has been reported the MV of TOMM22 is 22 kDa (PMID:19285029).

实验方案

Product Specific Protocols
WB protocol for CL594 Tom22 antibody CL594-66562Download protocol
FC protocol for CL594 Tom22 antibody CL594-66562Download protocol
Standard Protocols
Click here to view our Standard Protocols
