ChromoTek FITC Plus-conjugated PD-1 VHH

FITC-pd1 targets PD-1 in FC and shows reactivity with Human samples.

Host/Type

Alpaca VHH

Reactivity

Human

Applications

FC

Conjugate

FITC Plus Fluorescent dye

Cat No : FITC-pd1

Synonyms

PD-1-Nanobody, PD-1-Single domain antibody (sdAb), CD279, hPD-1, PD1 PD-1, programmed cell death protein 1

Validation Data Gallery

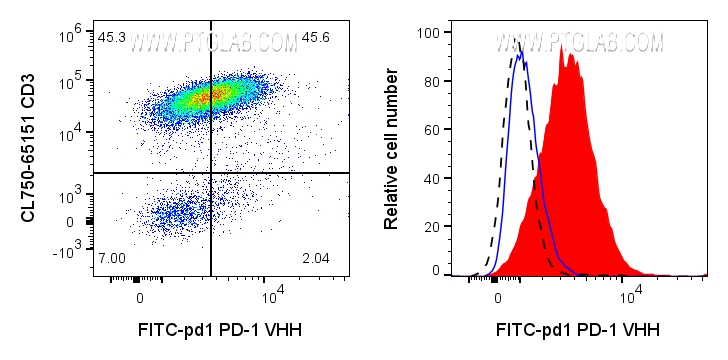

  • Human PBMCs were stimulated with CD3/CD28 T Cell Activation Beads (KMS310) and after 3 days the magnetic beads were removed. Left: 1x10^6 stimulated cells were surface stained with 2ug FITC Plus conjugated PD-1 VHH (FITC-pd1) and CL750 CD3 (CL750-65151). Right: 1x10^6 stimulated cells were surface stained with 2ug FITC Plus conjugated PD-1 VHH (FITC-pd1) (red) or unstained (blue). 1X10^6 unstimulated cells were surface stained with 2ug FITC Plus conjugated PD-1 VHH (FITC-pd1) (black dashed). Cells were treated with FC Receptor Block prior to staining. Cells were not fixed. Lymphocytes were gated.

    Human PBMCs were stimulated with CD3/CD28 T Cell Activation Beads (KMS310) and after 3 days the magnetic beads were removed. Left: 1x10^6 stimulated cells were surface stained with 2ug FITC Plus conjugated PD-1 VHH (FITC-pd1) and CL750 CD3 (CL750-65151). Right: 1x10^6 stimulated cells were surface stained with 2ug FITC Plus conjugated PD-1 VHH (FITC-pd1) (red) or unstained (blue). 1X10^6 unstimulated cells were surface stained with 2ug FITC Plus conjugated PD-1 VHH (FITC-pd1) (black dashed). Cells were treated with FC Receptor Block prior to staining. Cells were not fixed. Lymphocytes were gated.

Product Information

FITC-pd1 targets PD-1 in FC and shows reactivity with Human samples.

ApplicationsFC
ReactivityHuman
ConjugateFITC Plus Fluorescent dye
TypeNanobody
ClassRecombinant
HostAlpaca
AffinityPicomolar range, below the assay limit (biolayer interferometry)
Molecular Weight13.874 kDa
FormLiquid
Excitation/Emission Maxima Wavelengths495 nm / 524 nm
RRIDAB_3101929
Storage Buffer500 mM NaCl, 10 mM HEPES pH 7.0, 5 mM EDTA, 0.09% sodium azide
Storage ConditionStore at -20°C
BackgroundProgrammed cell death 1 (PD-1, also known as CD279) is an immunoinhibitory receptor that belongs to the CD28/CTLA-4 subfamily of the Ig superfamily. It is a 288 amino acid (aa) type I transmembrane protein composed of one Ig superfamily domain, a stalk, a transmembrane domain, and an intracellular domain containing an immunoreceptor tyrosine-based inhibitory motif (ITIM) as well as an immunoreceptor tyrosine-based switch motif (ITSM) (PMID: 18173375). PD-1 is expressed during thymic development and is induced in a variety of hematopoietic cells in the periphery by antigen receptor signaling and cytokines (PMID: 20636820). Engagement of PD-1 by its ligands PD-L1 or PD-L2 transduces a signal that inhibits T-cell proliferation, cytokine production, and cytolytic function (PMID: 19426218). It is critical for the regulation of T cell function during immunity and tolerance. Blockade of PD-1 can overcome immune resistance and also has been shown to have antitumor activity (PMID: 22658127; 23169436). It has been reported that PD-1 is heavily glycosylated and migrates with an apparent molecular mass of 47-55 kDa on SDS-PAGE, which is larger than its predicted mass of 32 kDa (PMID: 8671665; 17640856; 17003438).
