ChromoTek RFP-Trap® Magnetic Particles M-270 Kit

RFP-Trap® Magnetic Particles M-270 for immunoprecipitation (IP) of RFP-tagged proteins. RFP-Trap Magnetic Particles M-270 is highly recommended, when very large proteins/complexes are investigated, and magnetic separation is needed for IP. It consists of a RFP VHH/ Nanobody coupled to Magnetic Particles M-270.

Specificity

mCherry, mPlum, mRFP

Applications

IP, CoIP

Conjugate

Magnetic Particles M-270

Type

Nanobody

Cat No : rtdk

Synonyms

RFP, RFP tag, RFP-tag, RFP-Trap, RFP-Trap® Magnetic Particles M-270, RFP-Trap® Magnetic Particles M-270 Kit, rtdk, rtdk-20

Validation Data Gallery

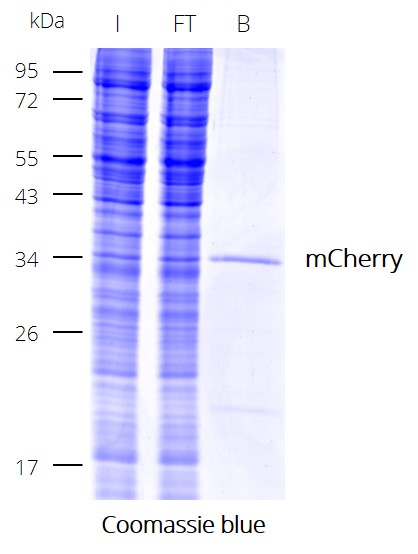

  • Immunoprecipitation (IP) of mCherry with RFP-Trap Magnetic Particles M-270. I: Input, FT: Flow-Through, B: Bound

    Immunoprecipitation (IP) of mCherry with RFP-Trap Magnetic Particles M-270. I: Input, FT: Flow-Through, B: Bound

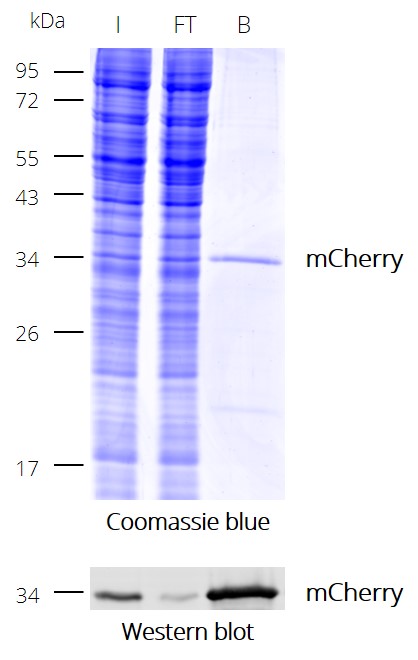

  • Coomassie and Western blot to show the effectivity of immunoprecipitation (IP) of mCherry with RFP-Trap Magnetic Particles M-270. I: Input, FT: Flow-Through, B: Bound

    Coomassie and Western blot to show the effectivity of immunoprecipitation (IP) of mCherry with RFP-Trap Magnetic Particles M-270. I: Input, FT: Flow-Through, B: Bound

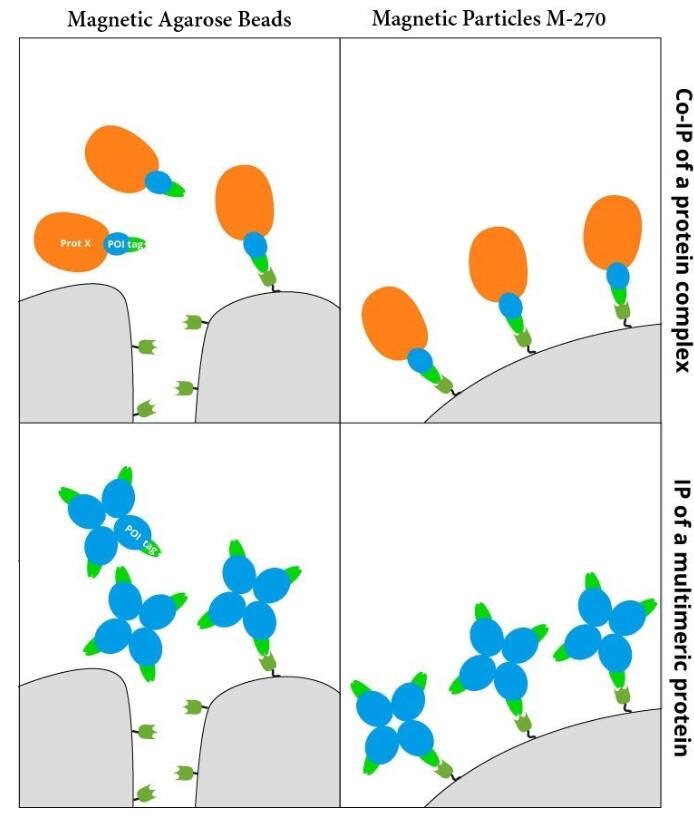

  • Cartoon to visualize the binding of large GFP-fusion proteins (GFP (green) + protein of interest (POI, blue) with interacting partner X (Prot X, orange) or multimeric proteins (GFP (green) + protein of interest (POI, blue) to the GFP VHH (dark green) of GFP-Trap Magnetic Agarose or GFP-Trap Magnetic Particles M-270.

    Cartoon to visualize the binding of large GFP-fusion proteins (GFP (green) + protein of interest (POI, blue) with interacting partner X (Prot X, orange) or multimeric proteins (GFP (green) + protein of interest (POI, blue) to the GFP VHH (dark green) of GFP-Trap Magnetic Agarose or GFP-Trap Magnetic Particles M-270.

Product Information

RFP-Trap® Magnetic Particles M-270 for immunoprecipitation (IP) of RFP-tagged proteins. RFP-Trap Magnetic Particles M-270 is highly recommended, when very large proteins/complexes are investigated, and magnetic separation is needed for IP. It consists of a RFP VHH/ Nanobody coupled to Magnetic Particles M-270.

DescriptionThe RFP-Trap® Magnetic Particles M-270 Kit contains RFP-Trap Magnetic Particles M-270, lysis, wash, and elution buffers for efficient immunoprecipitation of RFP-fusion proteins and their interacting factors.

• IP and Co-IP of RFP-tagged proteins without size limitation

• Automation and high throughput applications

• Magnetic separation with easy and efficient washing of RFP-Trap Magnetic Particles M-270

• Very high affinity (KD=5 nM) to bind even low abundant proteins

• No heavy & light antibody chains, short incubation (5-30 min)

• Extraordinary binding, also under harsh conditions

ApplicationsIP, CoIP, ChIP, RIP
Specificity/TargetmRFP, mCherry, mRFPruby, mPlum, tagRFP, mKate2, mOrange, PA-mCherry, mScarlet
For the complete list, please click here: Fluorescent protein specificity table
Binding capacity1.25 μg of recombinant mCherry per 25 μL bead slurry
ConjugateMagnetic Particles M-270, size: 2.8 µm
high throughput-compatible
Elution bufferSDS sample buffer
0.2 M glycine pH 2.5
Wash buffer compatibility0.5 M NaCl, 10 mM DTT, 2 % Nonidet P40 Substitute, 2 % Triton X-100
Type Nanobody
ClassRecombinant
HostAlpaca
Affinity (KD) Dissociation constant KD of 5 nM
Compatibility with mass spectrometryThe RFP-Trap® is optimized for on-bead digestion. For the application note, please click here: On-bead digest protocol for mass spectrometry
RRIDAB_2861253
Storage BufferPBS with 0.09% sodium azide
Storage ConditionShipped at ambient temperature. Upon receipt store at 4°C. Stable for one year. Do not freeze!

Kit components

ComponentDescription
Lysis bufferOptimized for cytoplasmatic proteins and mammalian cell lysis
RIPA bufferOptimized for nuclear/chromatin proteins and mammalian cell lysis
Wash buffer Removal of unwanted proteins, peptides, etc.
Dilution bufferDilution of cell lysate
Elution bufferFor acidic elution
RFP-Trap Magnetic Particles M-27020 reactions (500 µL)

Publications

ApplicationTitle
IP

Science

DNSN-1 recruits GINS for CMG helicase assembly during DNA replication initiation in Caenorhabditis elegans

Authors - Yisui Xia
View Article
