ZO-1 Polyclonal antibody
ZO-1 Polyclonal Antibody for WB, IHC, IF/ICC, FC (Intra), IP, ELISA
Host / Isotype
Rabbit / IgG
Reactivity
human, mouse, rat, canine, hamster and More (5)
Applications
WB, IHC, IF/ICC, FC (Intra), IP, ELISA and More (3)
Conjugate
Unconjugated
1255
验证数据展示
经过测试的应用

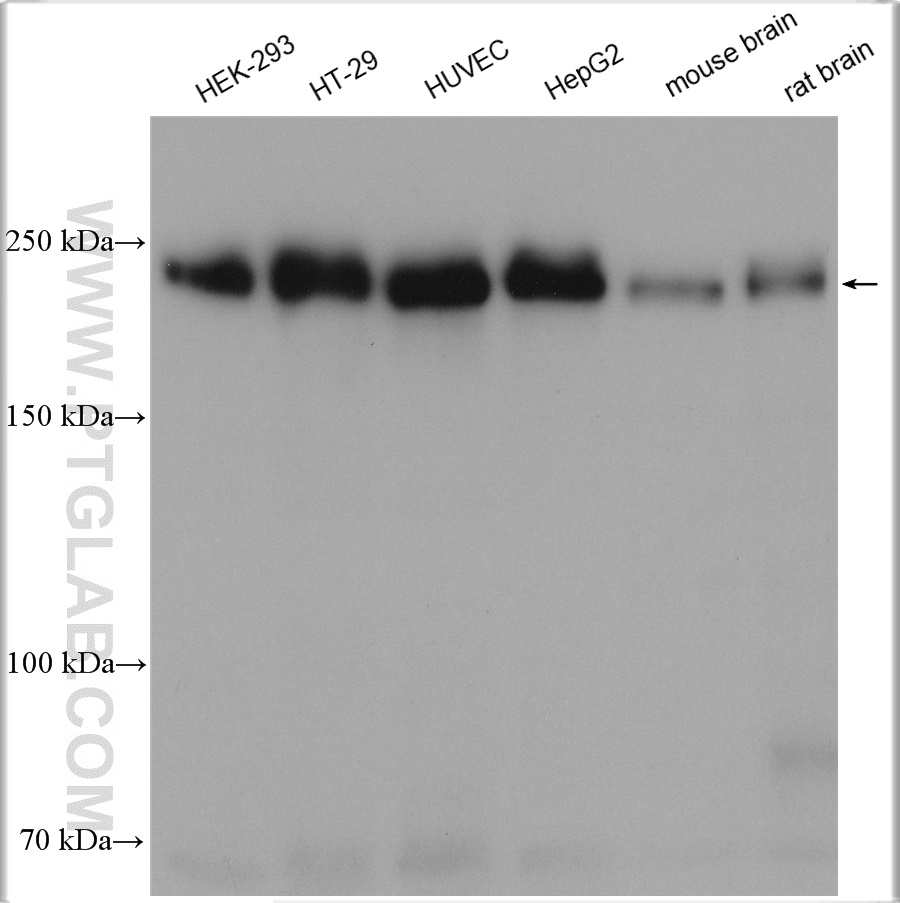

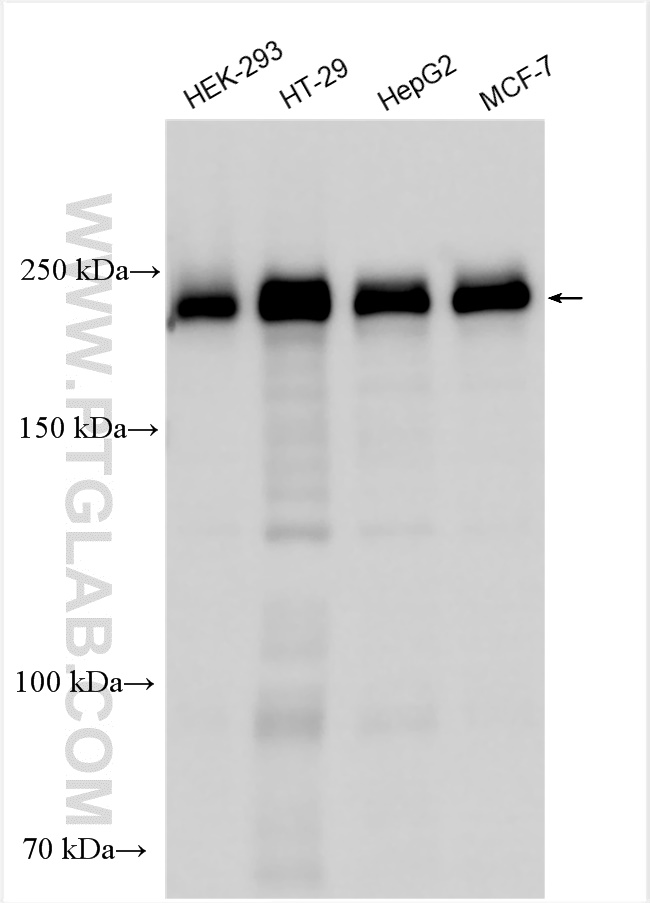

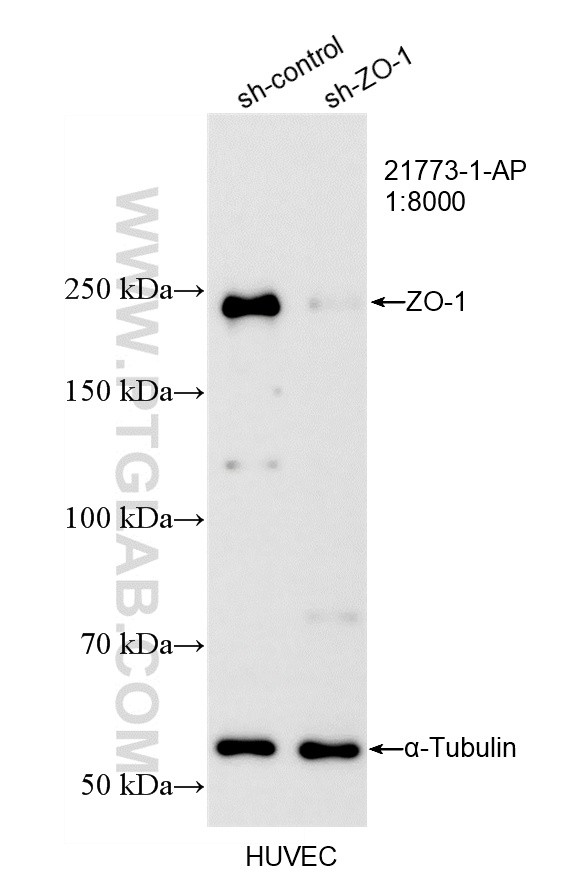

Positive WB detected in | A549 cells, HEK-293 cells, COLO 320 cells, HT-29 cells, HUVEC cells, HepG2 cells, mouse brain tissue, rat brain tissue, MCF-7 cells, Caco-2 cells, HeLa cells, K-562 cells |

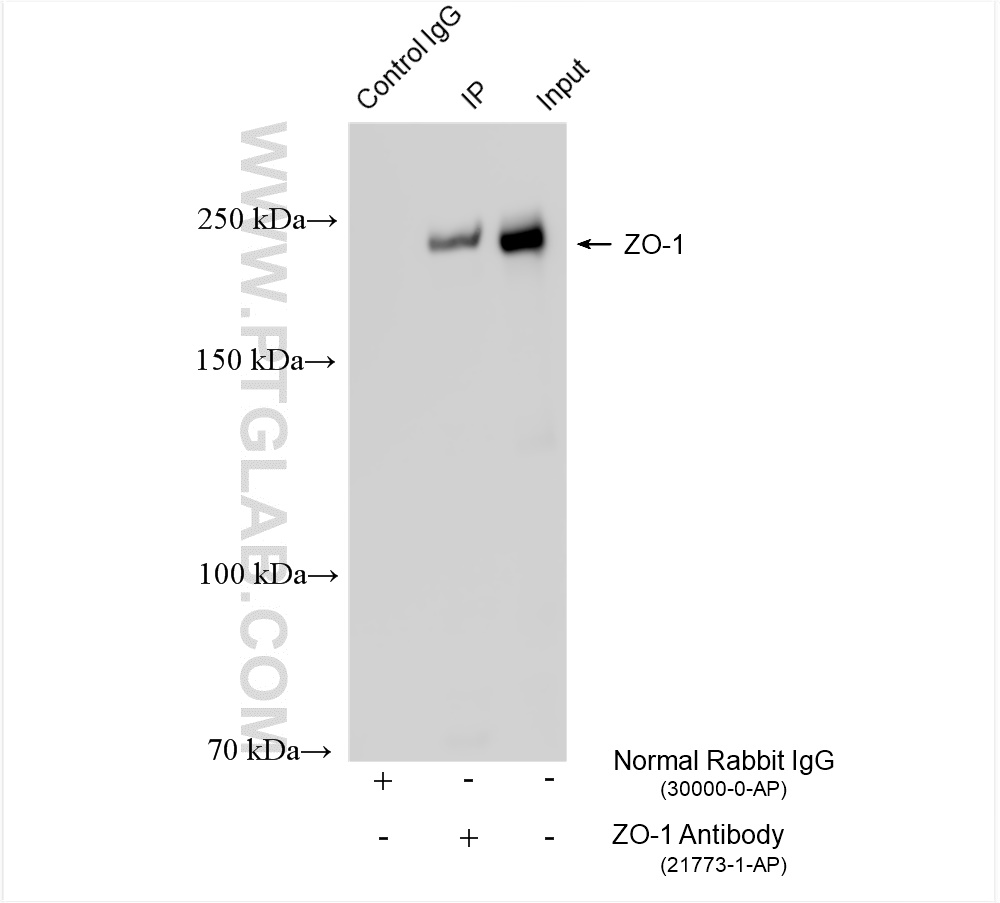

Positive IP detected in | HEK-293 cells |

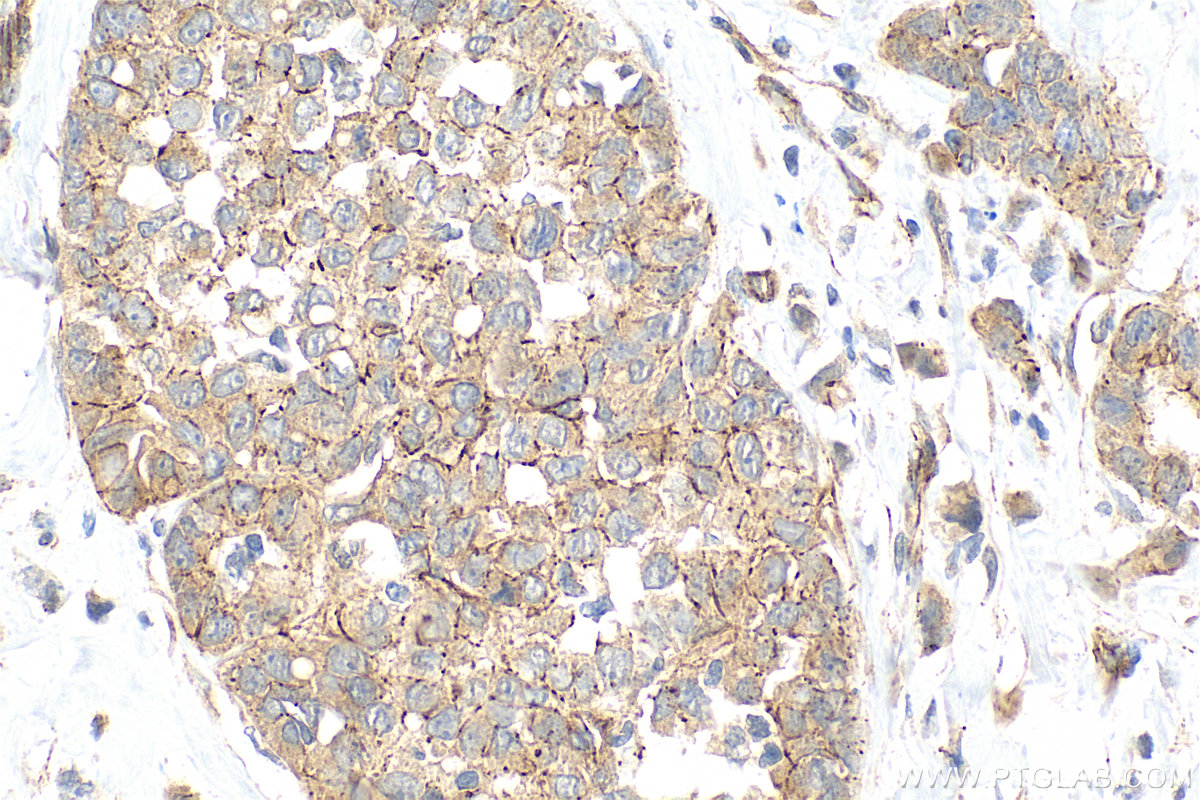

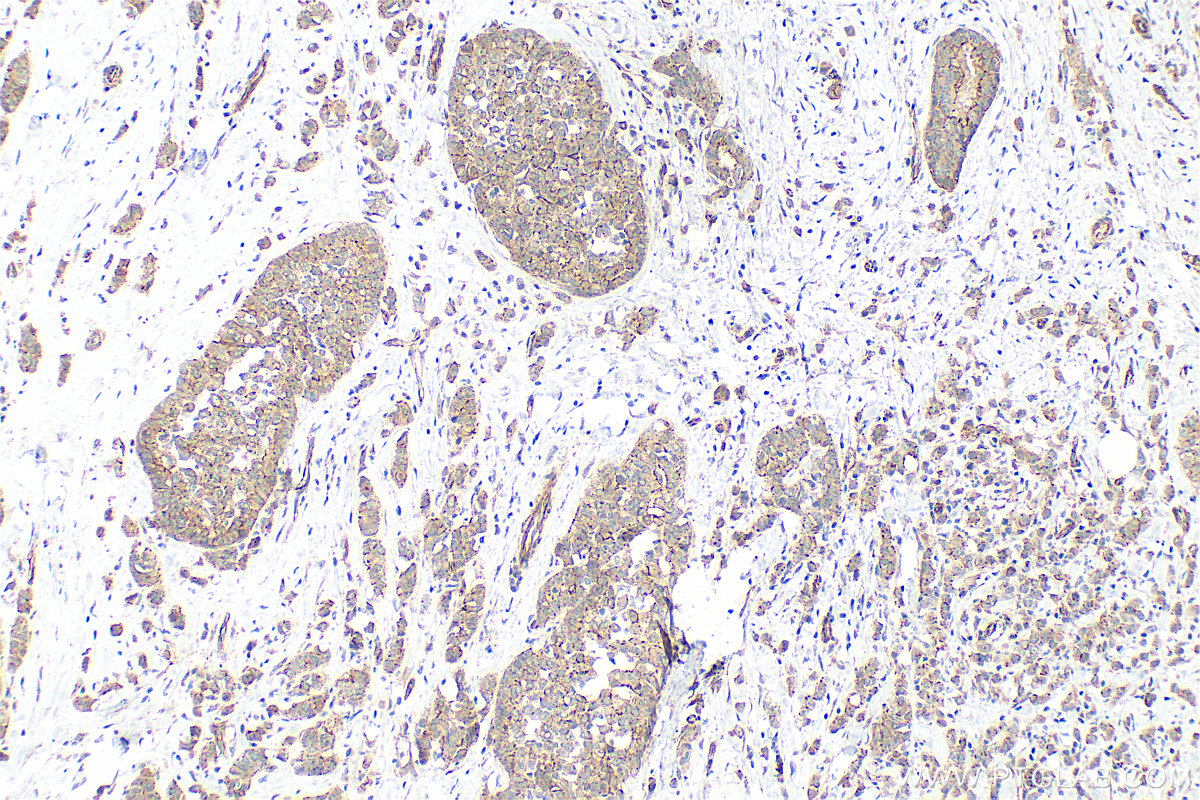

Positive IHC detected in | mouse kidney tissue Note: suggested antigen retrieval with TE buffer pH 9.0; (*) Alternatively, antigen retrieval may be performed with citrate buffer pH 6.0 |

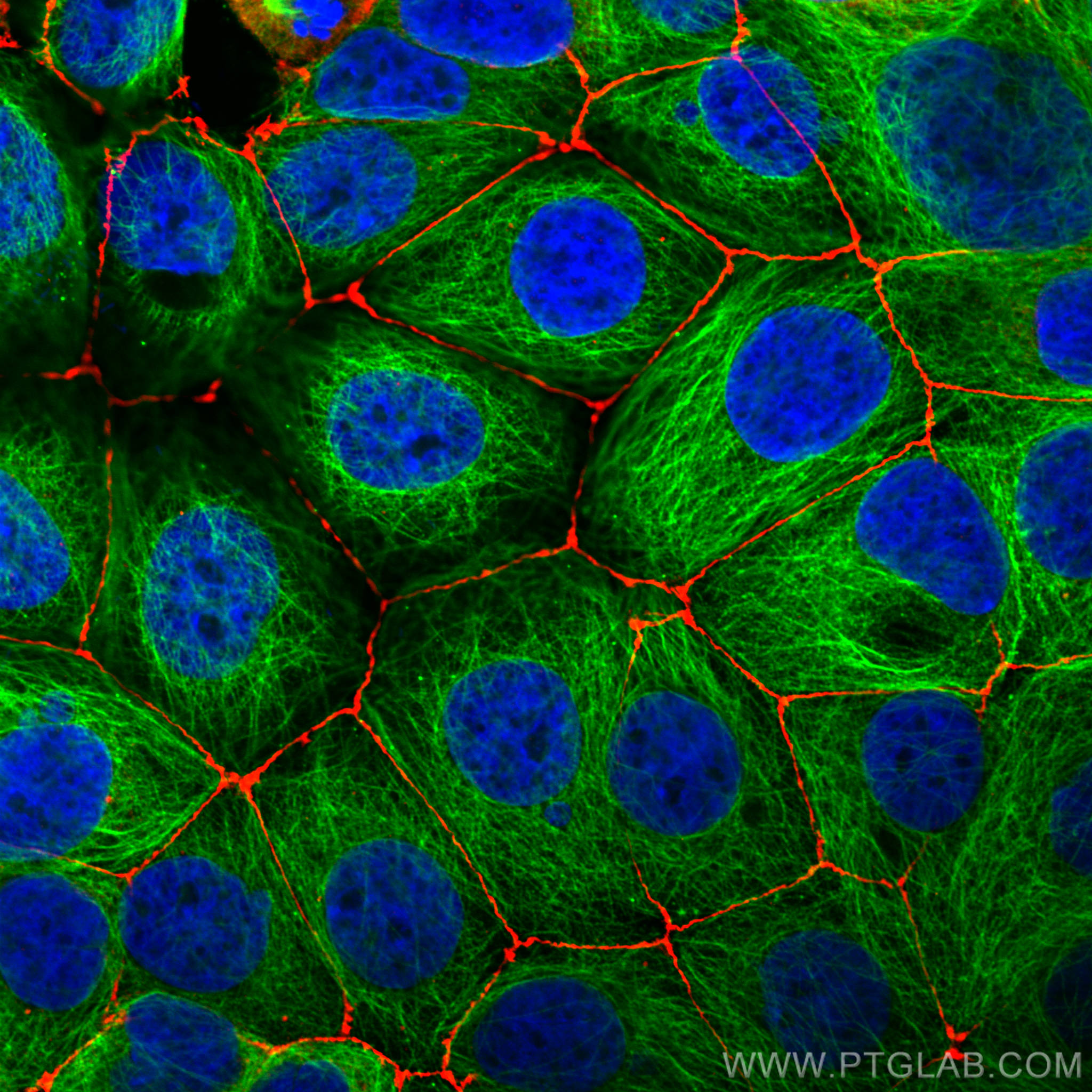

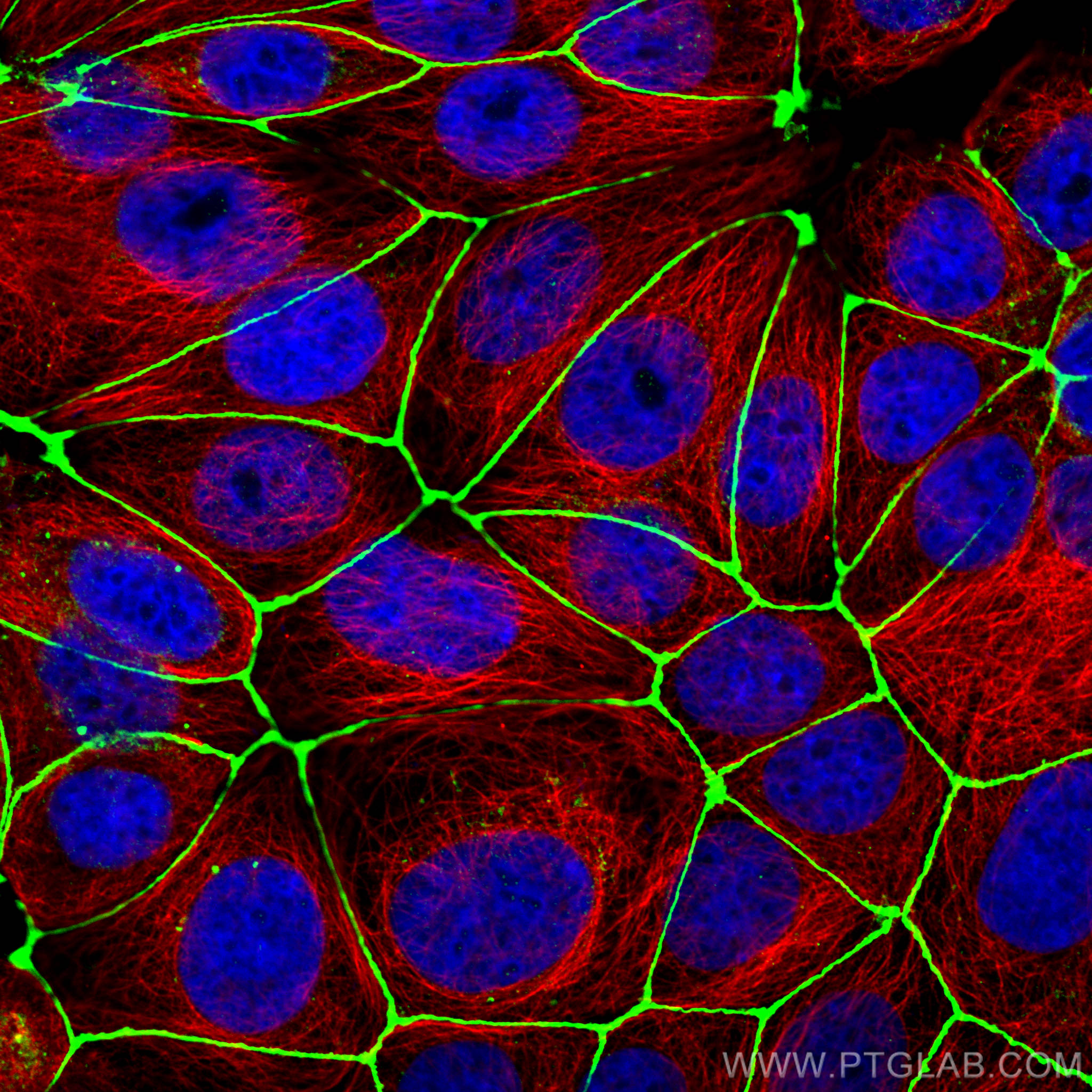

Positive IF/ICC detected in | MCF-7 cells, MDCK cells, HUVEC cells |
Positive FC (Intra) detected in | MCF-7 cells |
Freshly prepared samples are recommended.
推荐稀释比
Application | Dilution |
---|---|
Western Blot (WB) | WB : 1:5000-1:50000 |
Immunoprecipitation (IP) | IP : 0.5-4.0 ug for 1.0-3.0 mg of total protein lysate |
Immunohistochemistry (IHC) | IHC : 1:1000-1:4000 |
Immunofluorescence (IF)/ICC | IF/ICC : 1:100-1:2000 |
Flow Cytometry (FC) (INTRA) | FC (INTRA) : 0.80 ug per 10^6 cells in a 100 µl suspension |
It is recommended that this reagent should be titrated in each testing system to obtain optimal results. | |
Sample-dependent, Check data in validation data gallery. |
产品信息
21773-1-AP targets ZO-1 in WB, IHC, IF/ICC, FC (Intra), IP, CoIP, RIP, ELISA applications and shows reactivity with human, mouse, rat, canine, hamster samples.
Tested Applications | WB, IHC, IF/ICC, FC (Intra), IP, ELISA Application Description |
Cited Applications | WB, IHC, IF, CoIP, RIP, ELISA |
Tested Reactivity | human, mouse, rat, canine, hamster |
Cited Reactivity | human, mouse, rat, pig, rabbit, canine, chicken, bovine, goat |
Immunogen | ZO-1 fusion protein Ag16454 种属同源性预测 |
Host / Isotype | Rabbit / IgG |
Class | Polyclonal |
Type | Antibody |
Full Name | tight junction protein 1 (zona occludens 1) |
Synonyms | TJP1, ZO1, ZO 1, Tight junction protein ZO-1, Tight junction protein ZO 1 |
Calculated Molecular Weight | 1748 aa, 195 kDa |
Observed Molecular Weight | 230 kDa |
GenBank Accession Number | BC111712 |
Gene Symbol | ZO-1 |
Gene ID (NCBI) | 7082 |
RRID | AB_10733242 |
Conjugate | Unconjugated |
Form | Liquid |
Purification Method | Antigen affinity purification |
UNIPROT ID | Q07157 |
Storage Buffer | PBS with 0.02% sodium azide and 50% glycerol pH 7.3. |
Storage Conditions | Store at -20°C. Stable for one year after shipment. Aliquoting is unnecessary for -20oC storage. |
背景介绍
What is the function of ZO-1?
Zona Occludens 1 (ZO-1) is a tight junction (TJ) protein found in complexes at cell-cell contacts. The role of ZO-1 is to recruit other TJ proteins.1,2 The resulting TJ complexes regulate paracellular flow, contribute to apical-basal polarity, and are part of signaling pathways for proliferation and differentiation.3 This protein is useful for highlighting cell-cell contacts both in cultured cells and in tissue samples, outlining cell membranes and specific structures.
Where is ZO-1 expressed?
The protein is localized to the cytoplasmic membrane in most types of cells, particularly where a barrier function is essential. It is common in endothelial cells,4 which line the internal surface of blood and lymph vessels, and in epithelial cells,5 which form the outer barrier of organs.
ZO-1 is expressed in many tissues including the intestine, kidney, liver, and skeletal muscle cells.
What proteins does ZO-1 interact with?
ZO-1 contains multiple distinct protein domains that allow bind to other junctional proteins at the cytoplasmic membrane. The N-terminal of ZO-1 can dimerize with other ZO proteins and bind directly to other TJ proteins including claudins, connexions, and JAMs,6-10 which allows it to assemble TJ complexes. The C-terminal can interact with actin and cortactin, anchoring the TJ complexes to the cytoskeleton.8,11 This suggests that ZO-1 forms a link between the outer cell-cell contacts and the inner actin.
What is the molecular weight of ZO-1?
ZO-1 has an apparent molecular weight of 210-225 kDa. There are two isoforms of ZO-1, α+ and α-, which are produced by alternative RNA splicing and differ in the presence or absence of an internal 80-amino acid domain12,13. In some literature, the bands with a molecular weight of 250-260 kDa can also be detected for ZO-114,15,16,17.
1. McNeil, E., Capaldo, C. T. & Macara, I. G. Zonula occludens-1 function in the assembly of tight junctions in Madin-Darby canine kidney epithelial cells. Mol. Biol. Cell 17, 1922-32 (2006).
2. Kratzer, I. et al. Complexity and developmental changes in the expression pattern of claudins at the blood-CSF barrier. Histochem. Cell Biol. (2012). doi:10.1007/s00418-012-1001-9
3. Guillemot, L., Paschoud, S., Pulimeno, P., Foglia, A. & Citi, S. The cytoplasmic plaque of tight junctions: A scaffolding and signalling center. Biochim. Biophys. Acta - Biomembr. 1778, 601-613 (2008).
4. Tornavaca, O. et al. ZO-1 controls endothelial adherens junctions, cell-cell tension, angiogenesis, and barrier formation. J. Cell Biol. 208, 821-38 (2015).
5. Umeda, K. et al. Establishment and characterization of cultured epithelial cells lacking expression of ZO-1. J. Biol. Chem. 279, 44785-94 (2004).
6. Stevenson, B. R. Identification of ZO-1: a high molecular weight polypeptide associated with the tight junction (zonula occludens) in a variety of epithelia. J. Cell Biol. 103, 755-766 (1986).
7. Itoh, M. et al. Direct Binding of Three Tight Junction-Associated Maguks, Zo-1, Zo-2, and Zo-3, with the Cooh Termini of Claudins. J. Cell Biol. 147, 1351-1363 (1999).
8. Fanning, A. S., Jameson, B. J., Jesaitis, L. A. & Anderson, J. M. The Tight Junction Protein ZO-1 Establishes a Link between the Transmembrane Protein Occludin and the Actin Cytoskeleton. J. Biol. Chem. 273, 29745-29753 (1998).
9. Kausalya, P. J., Reichert, M. & Hunziker, W. Connexin45 directly binds to ZO-1 and localizes to the tight junction region in epithelial MDCK cells. FEBS Lett. 505, 92-96 (2001).
10. Itoh, M. et al. Junctional adhesion molecule (JAM) binds to PAR-3. J. Cell Biol. 154, 491-498 (2001).
11. Itoh, M., Nagafuchi, A., Moroi, S. & Tsukita, S. Involvement of ZO-1 in Cadherin-based Cell Adhesion through Its Direct Binding to α Catenin and Actin Filaments. J. Cell Biol. 138, 181-192 (1997).
12. Balda MS, Anderson JM. Two classes of tight junctions are revealed by ZO-1 isoforms. Am J Physiol. 264, (4 Pt 1):C918-24 (1993).
13. Sheth B, Fesenko I, Collins JE, Moran B, Wild AE, Anderson JM, Fleming TP. Tight junction assembly during mouse blastocyst formation is regulated by late expression of ZO-1 alpha+ isoform. Development. 124, (10):2027-37(1997).
14. Lassiter R, Merchen TD, Fang X, Wang Y. Protective Role of Kynurenine 3-Monooxygenase in Allograft Rejection and Tubular Injury in Kidney Transplantation. Front Immunol. 7, 12:671025 (2021).
15. Rempe RG, Hartz AMS, Soldner ELB, Sokola BS, Alluri SR, Abner EL, Kryscio RJ, Pekcec A, Schlichtiger J, Bauer B. Matrix Metalloproteinase-Mediated Blood-Brain Barrier Dysfunction in Epilepsy. J Neurosci. 2, 38(18):4301-4315 (2018).
16. Lin SC, Way EL. Effects of morphine and B-endorphin on Ca2+-ATPase activity of synaptic plasma membranes. NIDA Res Monogr. 75, 117-20(1986).
17. Wu Z, Mirza H, Teo JD, Tan KS. Strain-dependent induction of human enterocyte apoptosis by blastocystis disrupts epithelial barrier and ZO-1 organization in a caspase 3- and 9-dependent manner. Biomed Res Int. 2014, 209163(2014).
实验方案
Product Specific Protocols | |
---|---|
WB protocol for ZO-1 antibody 21773-1-AP | Download protocol |
IHC protocol for ZO-1 antibody 21773-1-AP | Download protocol |
IF protocol for ZO-1 antibody 21773-1-AP | Download protocol |
IP protocol for ZO-1 antibody 21773-1-AP | Download protocol |
Standard Protocols | |
---|---|
Click here to view our Standard Protocols |
发表文章
Species | Application | Title |
---|---|---|
Am J Respir Crit Care Med Ezrin, a Membrane Cytoskeleton Cross Linker Protein, as a Marker of Epithelial Damage in Asthma. | ||
Cell Metab Gut microbiota modulate distal symmetric polyneuropathy in patients with diabetes | ||
Cell Stem Cell Human branching cholangiocyte organoids recapitulate functional bile duct formation. | ||
Microbiome Arula-7 powder improves diarrhea and intestinal epithelial tight junction function associated with its regulation of intestinal flora in calves infected with pathogenic Escherichia coli O1 | ||
Adv Sci (Weinh) Plasma-Activated Solutions Mitigates DSS-Induced Colitis via Restoring Redox Homeostasis and Reversing Microbiota Dysbiosis | ||
J Extracell Vesicles Extracellular vesicle-mediated delivery of circDYM alleviates CUS-induced depressive-like behaviours. |
