验证数据展示
经过测试的应用

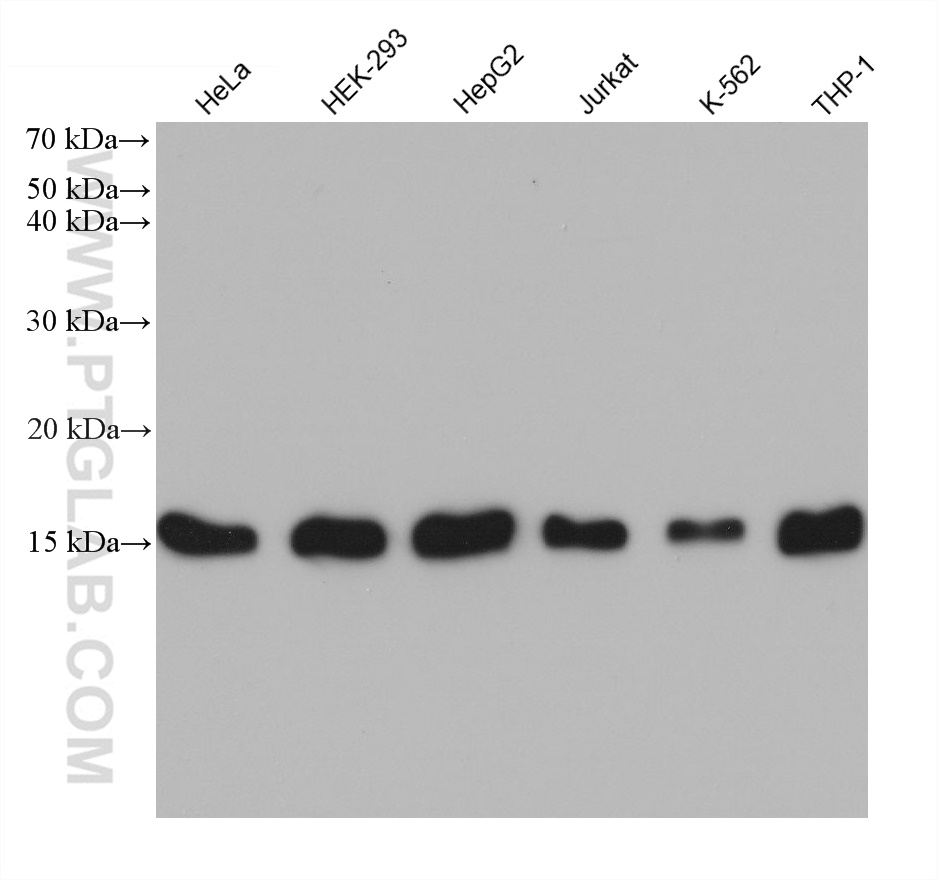

Positive WB detected in | HeLa cells, HEK-293 cells, HepG2 cells, Jurkat cells, THP-1 cells, K-562 cells |
Positive IHC detected in | human liver cancer tissue, human breast cancer tissue Note: suggested antigen retrieval with TE buffer pH 9.0; (*) Alternatively, antigen retrieval may be performed with citrate buffer pH 6.0 |
Positive IF/ICC detected in | HepG2 cells |
Positive FC (Intra) detected in | HeLa cells |
推荐稀释比
Application | Dilution |
---|---|
Western Blot (WB) | WB : 1:1000-1:5000 |
Immunohistochemistry (IHC) | IHC : 1:500-1:2000 |
Immunofluorescence (IF)/ICC | IF/ICC : 1:400-1:1600 |
Flow Cytometry (FC) (INTRA) | FC (INTRA) : 0.40 ug per 10^6 cells in a 100 µl suspension |
It is recommended that this reagent should be titrated in each testing system to obtain optimal results. | |
Sample-dependent, Check data in validation data gallery. |
产品信息
66777-1-Ig targets TOM20 in WB, IHC, IF/ICC, FC (Intra), ELISA applications and shows reactivity with human samples.
Tested Applications | WB, IHC, IF/ICC, FC (Intra), ELISA Application Description |
Cited Applications | WB, IHC, IF |
Tested Reactivity | human |
Cited Reactivity | human, monkey, chicken, bovine |
Immunogen | TOM20 fusion protein Ag2378 种属同源性预测 |
Host / Isotype | Mouse / IgG2b |
Class | Monoclonal |
Type | Antibody |
Full Name | translocase of outer mitochondrial membrane 20 homolog (yeast) |
Synonyms | TOMM20, TOMM 20, tom 20, MOM19, MAS20 |
Calculated Molecular Weight | 145 aa, 16 kDa |
Observed Molecular Weight | 16 kDa |
GenBank Accession Number | BC000882 |
Gene Symbol | TOM20 |
Gene ID (NCBI) | 9804 |
RRID | AB_2882123 |
Conjugate | Unconjugated |
Form | Liquid |
Purification Method | Protein A purification |
UNIPROT ID | Q15388 |
Storage Buffer | PBS with 0.02% sodium azide and 50% glycerol pH 7.3. |
Storage Conditions | Store at -20°C. Stable for one year after shipment. Aliquoting is unnecessary for -20oC storage. |
背景介绍
TOM20, also named as KIAA0016, belongs to the Tom20 family. It is a central component of the receptor complex responsible for the recognition and translocation of cytosolically synthesized mitochondrial preproteins. Together with TOM22, TOM20 functions as the transit peptide receptor at the surface of the mitochondrion outer membrane and facilitates the movement of preproteins into the TOM40 translocation pore. TOM20 is characterized as major docking receptors to mediate the recognition by different mechanisms.
实验方案
Product Specific Protocols | |
---|---|
WB protocol for TOM20 antibody 66777-1-Ig | Download protocol |
IHC protocol for TOM20 antibody 66777-1-Ig | Download protocol |
IF protocol for TOM20 antibody 66777-1-Ig | Download protocol |
Standard Protocols | |
---|---|
Click here to view our Standard Protocols |
发表文章
Species | Application | Title |
---|---|---|
Science Structural insight into the SAM-mediated assembly of the mitochondrial TOM core complex. | ||
J Pineal Res Melatonin and verteporfin synergistically suppress the growth and stemness of head and neck squamous cell carcinoma through the regulation of mitochondrial dynamics | ||
Brain Inhibiting mitochondrial fission rescues degeneration in hereditary spastic paraplegia neurons. | ||
Redox Biol Hypoxic acclimation improves cardiac redox homeostasis and protects heart against ischemia-reperfusion injury through upregulation of O-GlcNAcylation. | ||
Br J Cancer Loss of NDUFS1 promotes gastric cancer progression by activating the mitochondrial ROS-HIF1α-FBLN5 signaling pathway | ||
