• Featured Product
  • KD/KO Validated

CoraLite®594-conjugated TOM20 Polyclonal antibody

TOM20 Polyclonal Antibody for IF/ICC, FC (Intra)

Host / Isotype

Rabbit / IgG

Reactivity

human, mouse, rat

Applications

IF/ICC, FC (Intra) and More (1)

Conjugate

CoraLite®594 Fluorescent Dye

Cat no : CL594-11802

Print datasheet

Synonyms

TOMM20, TOMM 20, tom 20, MOM19, MAS20



经过测试的应用

Positive IF/ICC detected inHUVEC cells

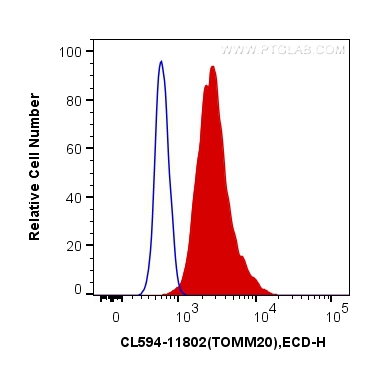

Positive FC (Intra) detected inHepG2 cells
For other applications, we recommend the unconjugated version of this antibody, 11802-1-AP

推荐稀释比

ApplicationDilution
Immunofluorescence (IF)/ICCIF/ICC : 1:50-1:500
Flow Cytometry (FC) (INTRA)FC (INTRA) : 0.20 ug per 10^6 cells in a 100 µl suspension
It is recommended that this reagent should be titrated in each testing system to obtain optimal results.
Sample-dependent, Check data in validation data gallery.

发表文章中的应用

IFSee 2 publications below

产品信息

CL594-11802 targets TOM20 in IF/ICC, FC (Intra) applications and shows reactivity with human, mouse, rat samples.

Tested Applications IF/ICC, FC (Intra) Application Description
Cited ApplicationsIF
Tested Reactivity human, mouse, rat
Cited Reactivityhuman, mouse
Immunogen TOM20 fusion protein Ag2378 种属同源性预测
Host / Isotype Rabbit / IgG
Class Polyclonal
Type Antibody
Full Name translocase of outer mitochondrial membrane 20 homolog (yeast)
Synonyms TOMM20, TOMM 20, tom 20, MOM19, MAS20
Calculated Molecular Weight 145 aa, 16 kDa
Observed Molecular Weight 16 kDa
GenBank Accession NumberBC000882
Gene Symbol TOM20
Gene ID (NCBI) 9804
RRIDAB_2919775
Conjugate CoraLite®594 Fluorescent Dye
Excitation/Emission Maxima Wavelengths588 nm / 604 nm
Form Liquid
Purification MethodAntigen affinity purification
UNIPROT IDQ15388
Storage Buffer PBS with 50% Glycerol, 0.05% Proclin300, 0.5% BSA, pH 7.3.
Storage ConditionsStore at -20°C. Avoid exposure to light. Stable for one year after shipment. Aliquoting is unnecessary for -20oC storage.

背景介绍

Background

 TOM20 (KIAA0016) belongs to the Tom family. It is a subunit of the mitochondrial import receptor (PMID: 7584026), whose main role is to translocate cytosolically synthesized mitochondrial proteins through the outer mitochondrial membrane and subsequently facilitate the movement of proteins into the TOM40 translocation pore complex (PMID: 21173275).

 What is the molecular weight of TOM20?

 It is a short 16.3 kDa protein containing several highly conserved regions, including the transmembrane segment, the ligand-binding domain, and flexible segments at the N terminus and the C terminus of the protein crucial for its function (PMID: 15733919).

 What is the subcellular localization of TOM20?

 It specifically localizes in the mitochondrial outer membrane. In malignant cells, strong granular staining in the cytoplasm has been observed.

 What is the tissue specificity of TOM20?

 It is ubiquitously expressed in various tissues, with a particularly high expression in the brain, thyroid, and pancreas.

 What is the function of TOM20 in the mitochondrial membrane?

 Mitochondrial preproteins are generally synthesized in the cytoplasm with signal or targeting sequences, which are recognized by specific receptors on the outer mitochondrial membrane. TOM20, as one of the components of the TOM40 complex, specifically recognizes pre-sequences on target proteins or their unfolded forms. In addition to its translocase activity, TOM20 may act as a chaperone preventing these proteins from aggregation at the surface of mitochondria (PMID: 14699115).

 What is TOM20's involvement in disease?

 Diseases linked to the misregulation of TOM20 include Perry Syndrome and neurodegeneration with brain iron accumulation 2A. Numerous studies also associate deregulation of TOM20 with an array of mitochondrial dysfunctions and mitophagy defects (PMIDs: 30254015, 30160596).


实验方案

Product Specific Protocols
IF protocol for CL594 TOM20 antibody CL594-11802Download protocol
FC protocol for CL594 TOM20 antibody CL594-11802Download protocol
Standard Protocols
Click here to view our Standard Protocols

发表文章

SpeciesApplicationTitle
humanIF

Biochem Biophys Res Commun

Inhibiting Pink1/Parkin-mediated mitophagy enhances the anticancer effects of quercetin in hepatocellular carcinomaf

Authors - Fang Chen
mouseIF

Sci Adv

Cardiolipin coordinates inflammatory metabolic reprogramming through regulation of Complex II disassembly and degradation

Authors - Mack B Reynolds
