ZO-1 Recombinant antibody

ZO-1 Uni-rAbTM Recombinant Antibody for WB, IHC, IF/ICC, IP, ELISA

Host / Isotype

Rabbit / IgG

Reactivity

human, mouse, rat, canine

Applications

WB, IHC, IF/ICC, IP, ELISA

Conjugate

Unconjugated

CloneNo.

240150D7

Cat no : 82870-7-RR

Print datasheet

Synonyms

TJP1, ZO 1, Tight junction protein ZO-1, Tight junction protein ZO 1, Tight junction protein 1

验证数据展示

  • WB analysis using 82870-7-RR

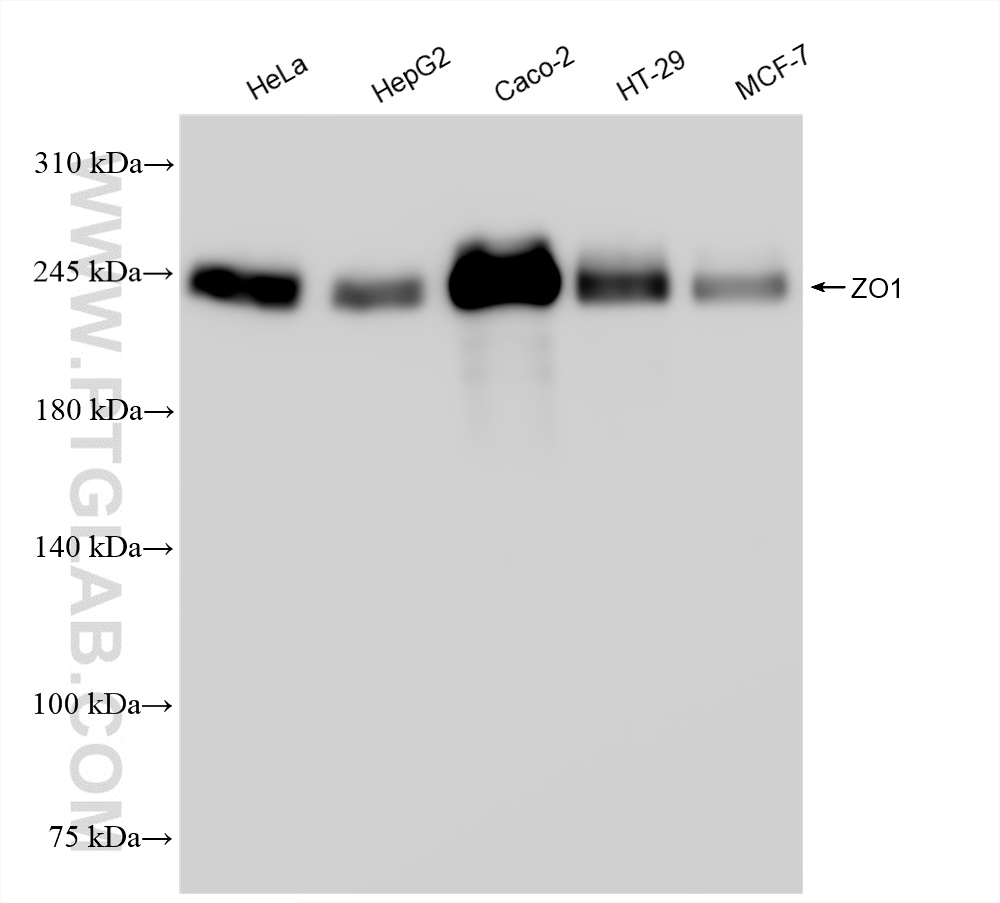

    WB analysis using 82870-7-RR

    Various lysates were subjected to SDS PAGE followed by western blot with 82870-7-RR (ZO1 antibody) at dilution of 1:20000 incubated at room temperature for 1.5 hours.

  • IHC staining of mouse kidney using 82870-7-RR

    IHC staining of mouse kidney using 82870-7-RR

    Immunohistochemical analysis of paraffin-embedded mouse kidney tissue slide using 82870-7-RR (ZO-1 antibody) at dilution of 1:2000 (under 40x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

  • IF Staining of MCF-7 using 82870-7-RR

    IF Staining of MCF-7 using 82870-7-RR

    Immunofluorescent analysis of (4% PFA) fixed MCF-7 cells using ZO1 antibody (82870-7-RR, Clone: 240150D7 ) at dilution of 1:400 and CoraLite®488-Conjugated AffiniPure Goat Anti-Mouse IgG(H+L) (SA00013-1).

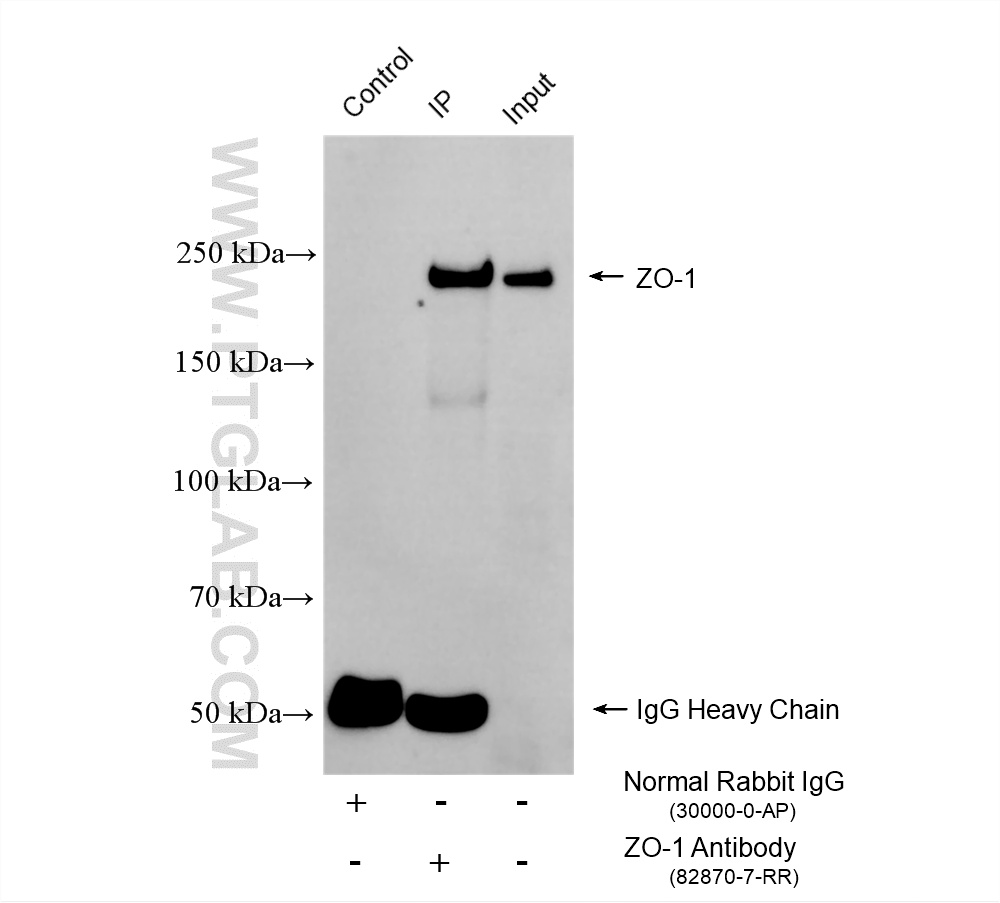

  • IP experiment of HEK-293 using 82870-7-RR

    IP experiment of HEK-293 using 82870-7-RR

    IP result of anti-ZO-1 (IP:82870-7-RR, 4ug; Detection:82870-7-RR 1:4000) with HEK-293 cells lysate 1610 ug.

  • IF Staining of U2OS using 82870-7-RR

    IF Staining of U2OS using 82870-7-RR

    Immunofluorescent analysis of (4% PFA) fixed U2OS cells using ZO-1 antibody (82870-7-RR, Clone: 240150D7 ) at dilution of 1:400 and Multi-rAb CoraLite ® Plus 488-Goat Anti-Rabbit Recombinant Secondary Antibody (H+L) (RGAR002).

  • IF Staining of U2OS using 82870-7-RR

    IF Staining of U2OS using 82870-7-RR

    Immunofluorescent analysis of (4% PFA) fixed U2OS cells using ZO-1 antibody (82870-7-RR, Clone: 240150D7 ) at dilution of 1:500 and CoraLite®488-Conjugated Goat Anti-Rabbit IgG(H+L) (SA00013-2), Alpha Tubulin antibody (66031-1-Ig, Clone: 1E4C11, red).

  • IF Staining of Caco-2 using 82870-7-RR

    IF Staining of Caco-2 using 82870-7-RR

    Immunofluorescent analysis of (4% PFA) fixed Caco-2 cells using ZO-1 antibody (82870-7-RR, Clone: 240150D7 ) at dilution of 1:500 and Multi-rAb CoraLite ® Plus 488-Goat Anti-Rabbit Recombinant Secondary Antibody (H+L) (RGAR002), Alpha Tubulin antibody (66031-1-Ig, Clone: 1E4C11, red).

  • Affinity and Kinetic Characterization of 82870-7-RR

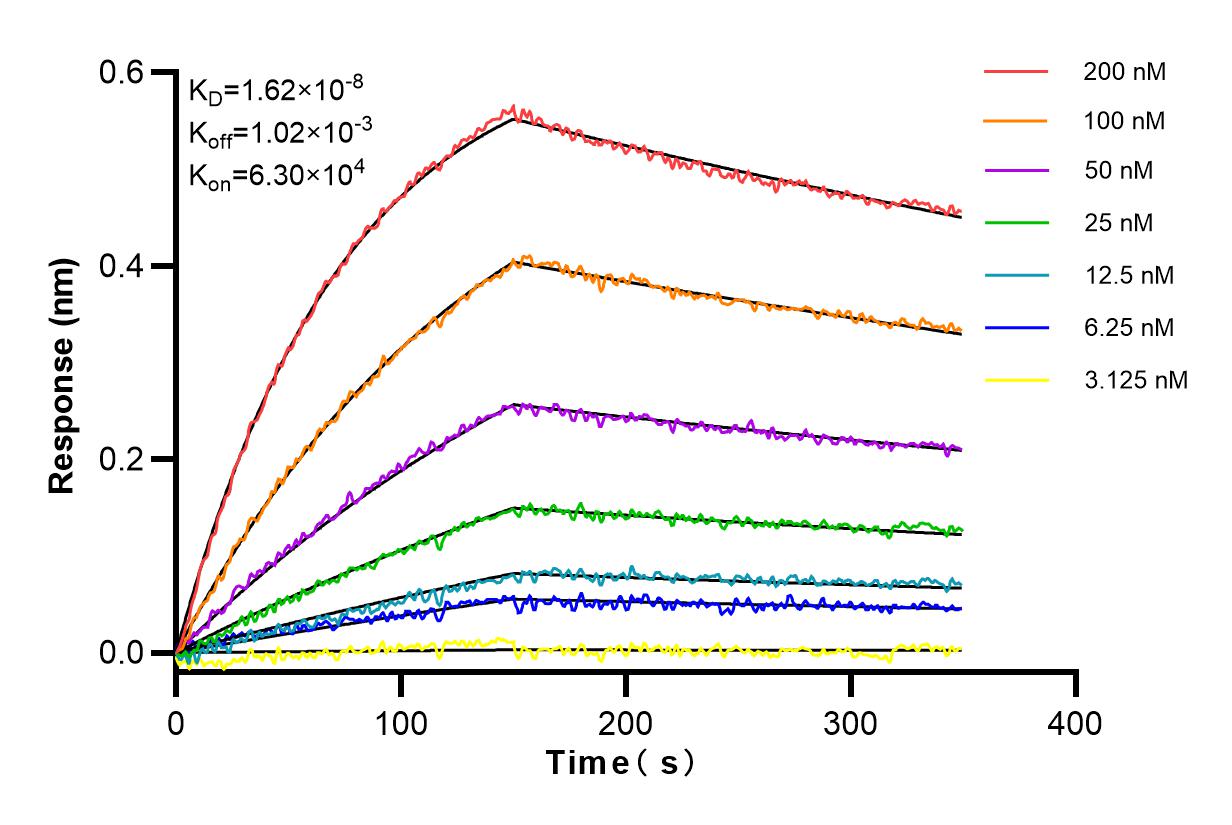

    Affinity and Kinetic Characterization of 82870-7-RR

    Biolayer interferometry (BLl) kinetic assays of 82870-7-RR against Human ZO-1 were performed. The affinity constant is 16.2 nM.

经过测试的应用

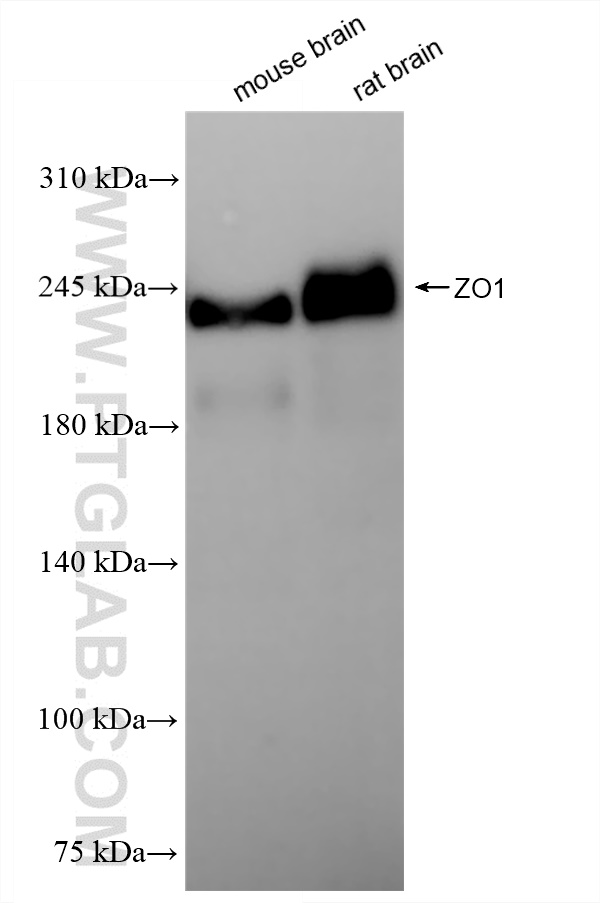

Positive WB detected inHeLa cells, mouse brain tissue, HepG2 cells, Caco-2 cells, HT-29 cells, MCF-7 cells, rat brain tissue
Positive IP detected inHEK-293 cells
Positive IHC detected inmouse kidney tissue
Note: suggested antigen retrieval with TE buffer pH 9.0; (*) Alternatively, antigen retrieval may be performed with citrate buffer pH 6.0
Positive IF/ICC detected inMCF-7 cells, U2OS cells, MDCK cells, Caco-2 cells

Freshly prepared samples are recommended.

推荐稀释比

ApplicationDilution
Western Blot (WB)WB : 1:5000-1:50000
Immunoprecipitation (IP)IP : 0.5-4.0 ug for 1.0-3.0 mg of total protein lysate
Immunohistochemistry (IHC)IHC : 1:1000-1:4000
Immunofluorescence (IF)/ICCIF/ICC : 1:200-1:800
It is recommended that this reagent should be titrated in each testing system to obtain optimal results.
Sample-dependent, Check data in validation data gallery.

产品信息

The immunogen of 82870-7-RR is ZO-1 Fusion Protein expressed in E. coli.

Tested Applications WB, IHC, IF/ICC, IP, ELISA Application Description
Tested Reactivity human, mouse, rat, canine
Immunogen ZO-1 fusion protein Ag33182 种属同源性预测
Host / Isotype Rabbit / IgG
Class Recombinant
Type Antibody
Full Name tight junction protein 1 (zona occludens 1)
Synonyms TJP1, ZO 1, Tight junction protein ZO-1, Tight junction protein ZO 1, Tight junction protein 1
Calculated Molecular Weight 1748 aa, 195 kDa
Observed Molecular Weight 230 kDa
GenBank Accession NumberBC111712
Gene Symbol ZO-1
Gene ID (NCBI) 7082
Conjugate Unconjugated
Form Liquid
Purification MethodProtein A purfication
UNIPROT IDQ07157
Storage Buffer PBS with 0.02% sodium azide and 50% glycerol pH 7.3.
Storage ConditionsStore at -20°C. Stable for one year after shipment. Aliquoting is unnecessary for -20oC storage.

背景介绍

Tight junction (or zonula occludens) form the continuous intercellular barrier between epithelial and endothelial cells, which is required to separate tissue spaces and regulate selective movement of solutes across the epithelium and endothelium (PMID: 20066090). ZO-1 (also known as TJP1) is a peripheral membrane phosphoprotein located on the cytoplasmic face and is expressed in tight junctions of both epithelial and endothelial cells (PMID: 3528172). It binds the transmembrane proteins occludin and the claudins linking them to cytoskeletal actin (PMID: 17418867). ZO-1 belongs to a family of multidomain proteins known as the membrane-associated guanylate kinase homologs (MAGUKs). It is a pivotal tight junction protein and may be involved in signaling mechanisms regulating cell proliferation and differentiation (PMID: 22782886).

实验方案

Product Specific Protocols
WB protocol for ZO-1 antibody 82870-7-RRDownload protocol
IHC protocol for ZO-1 antibody 82870-7-RRDownload protocol
IF protocol for ZO-1 antibody 82870-7-RRDownload protocol
IP protocol for ZO-1 antibody 82870-7-RRDownload protocol
